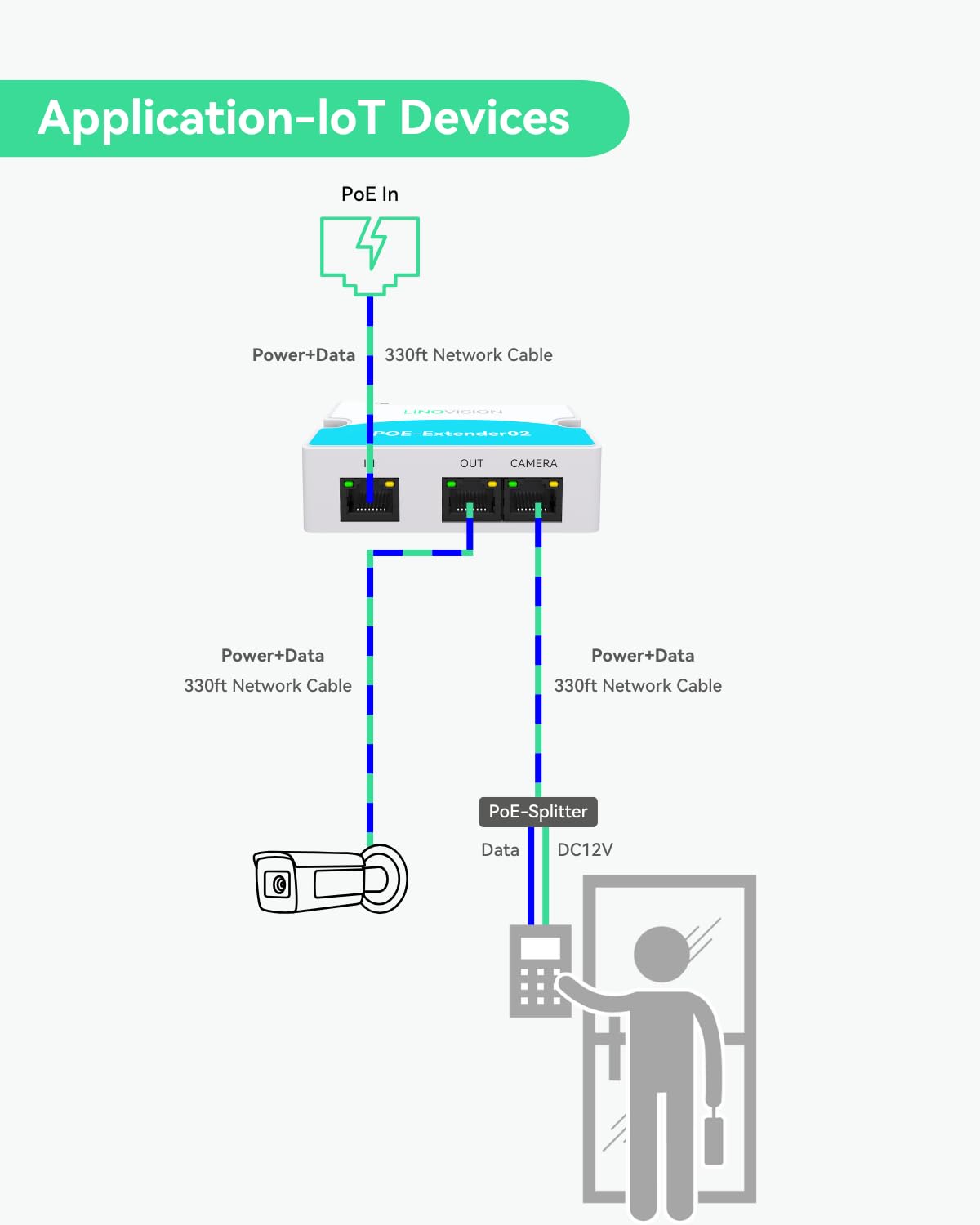

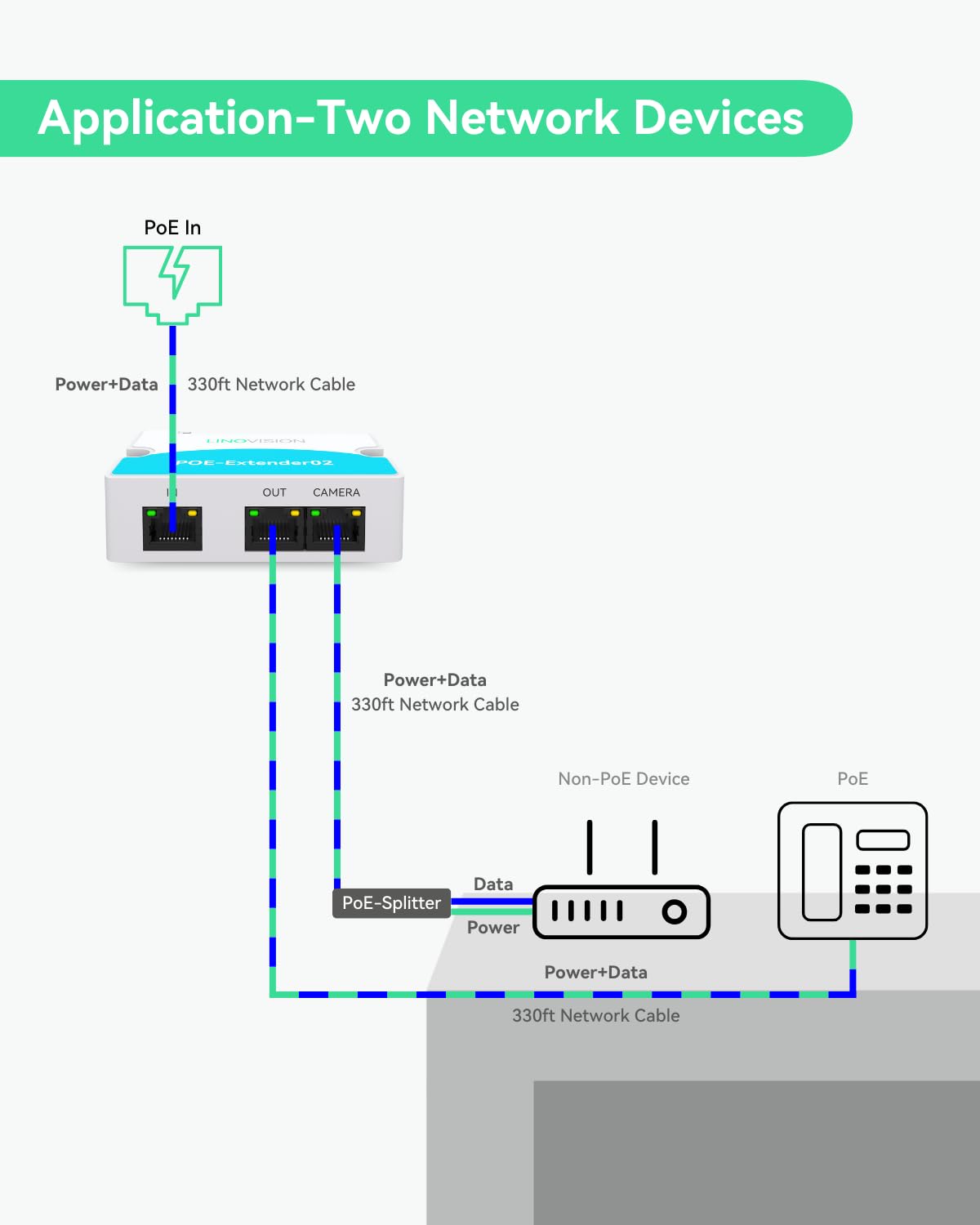

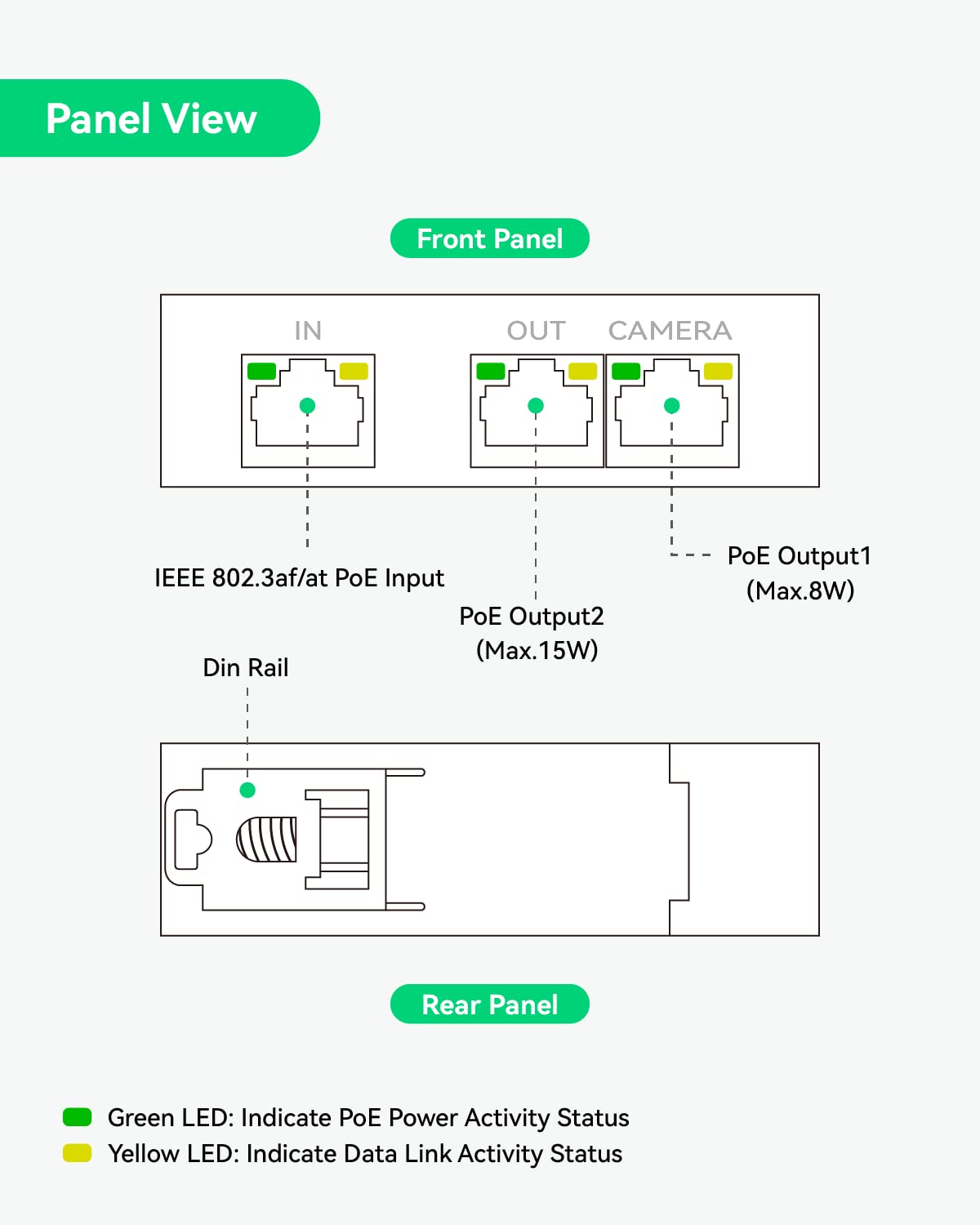

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. Mini 2 Port POE Extender Merchant Video Interface detail The CAMERA Port: max 8W power consumption, the OUT Port: max 15WThe POE input port: POE Mode A/B, 2 output ports: POE Mode A/BMax bandwidth :100MbpsGreen LED: Indicate PoE Power Activity Status. Working status: Always onYellow LED: Indicate Data Link Activity Status. Working status: Flashing Excellent Compatibility and Safety Using hardware IEEE802.3af/at PoE chipset, it automatically powers up PD device with 4 steps (PD Detection -> PoE Classification -> Start Up -> Power ON). It allocates appropriate power to IEEE802.af/at PoE devices, and no power for non-PoE devices. It ensures high safety for PoE and Non-PoE devices Previous page Next page 1 To Two PoE Cameras 2 Configure Camera on Site 3 To Two Network Devices 4 To Two IoT Devices 5 Cascade Deployment Previous page Next page 1 Indoor Installation 2 Outdoor Installation Key Specification PoE Input 1*10/100 Base-T RJ45 port; Compliant to IEEE802.3af/at PoE standard; PoE Output 2*10/100 Base-T RJ45 ports; CAMERA Port: compliant to IEEE802.3af PoE standard, max 8W power consumption; OUT Port: compliant to IEEE802.3af/at PoE standard, max 16W power consumption; Transmission Distance Each PoE Extender will extend extra 330ft PoE + Data transmission; Two levels cascade deployment is supported, and total power consumption of PoE devices is less than 25W. (60W PoE Injector is required for cascade deployment) PoE Status Indicator Green LED: PoE Power Act Status ; Yellow LED: Ethernet Data Link Status；Working status: the green light is always on, and the yellow light is flashing PoE Pin Assignment（PoE Input） Support PoE Mode A and Mode B: Both 1/2(-), 3/6(+) and 7/8(-), 4/5(+) PoE Pin Assignment（PoE Output） Support PoE Mode A and Mode B: Both 1/2(-), 3/6(+) and 7/8(-), 4/5(+) Power consumption <=3W (or 30W with PoE device connected) Working Humidity 10%~90% Working Temperature -30°C ~ 65°C or -22 ℉ ~ 149 ℉ Weight 57g (2.01 ounces) Dimension 79mm×52mm×23mm (3.11”* 2.05” * 0.91”) Does this extender need an addition power supply? No, it does not require local power supply. This PoE extender is powered by PoE devices (48V or 53V PoE Switch/PoE NVR/PoE Injector/Mid-span). Can this extender be installed outdoors？ This PoE Extender is not waterproof, there is a version with waterproof box, please search ASIN: B0DK181932. Can this be used as an ethernet splitter to connect non-PoE devices? Yes, Our PoE Extender supports connecting PoE devices and non-PoE devices. When connecting non-PoE devices, only data is transmitted, the non-PoE devices need to be powered separately. Why the extender is unable to work? The main reason is that the load capacity of two PoE outputs exceeds the power input of PoE Extender. In this way, please try to use 60W high PoE injector or mid-span to fix this issue. What is the load capacity of PoE device that connected to this PoE extender? Basically, the load capability depends on the PoE supply device, the total power consumption of two PoE output is less than the PoE power input. We recommend to use 60W High PoE injector to connect to the PoE extender. Selection Guide of Linovision POE Extender POE-Extender02 Add to Cart POE-Extender02WP2 Add to Cart POE-EXT6002GP Add to Cart POE-EXT3001GP Add to Cart POE-EXT3001LP(2 Pack) Add to Cart POE-EXT9004G Add to Cart POE-EXT04 Add to Cart Customer Reviews 4.1 out of 5 stars 183 — 3.1 out of 5 stars 12 3.8 out of 5 stars 16 4.1 out of 5 stars 33 4.6 out of 5 stars 7 4.6 out of 5 stars 7 Price $32.99$32.99 $89.00$89.00 $89.99$89.99 $39.99$39.99 $89.99$89.99 $95.00$95.00 $49.99$49.99 POE Input Max 30W Max 30W Max 90W Max 30W Max 30W Max 90W Max 60W PoE Output 1 x16W + 1 x 8W 1 x16W + 1 x 8W 1 x 60W + 1 x 30W 1x 30W 1x 30W 4 x 90W 4 x 30W PoE Standard IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at/bt IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at/bt IEEE802.3af/at/bt Total POE Budget 30W 30W 90W 30W 30W 75W(POE Input),120W(DC Input) 60W Ethernet Speed 10/100Mbps 10/100Mbps 10/100/1000Mbps 10/100/1000Mbps 10/100Mbps 10/100/1000Mbps 10/100/1000Mbps Transmission Distance 330ft 330ft 330ft 330ft Max 2600ft 820ft 330ft Optional DC Power Supply ✘ ✘ ✘ ✘ ✘ ✔ ✘ Waterproof ✘ ✔ ✔ ✔ ✔ ✘ ✘ Installation Method Wall/Din Rail Mount Wall Mount Wall Mount / / Wall/Din Rail Mount /

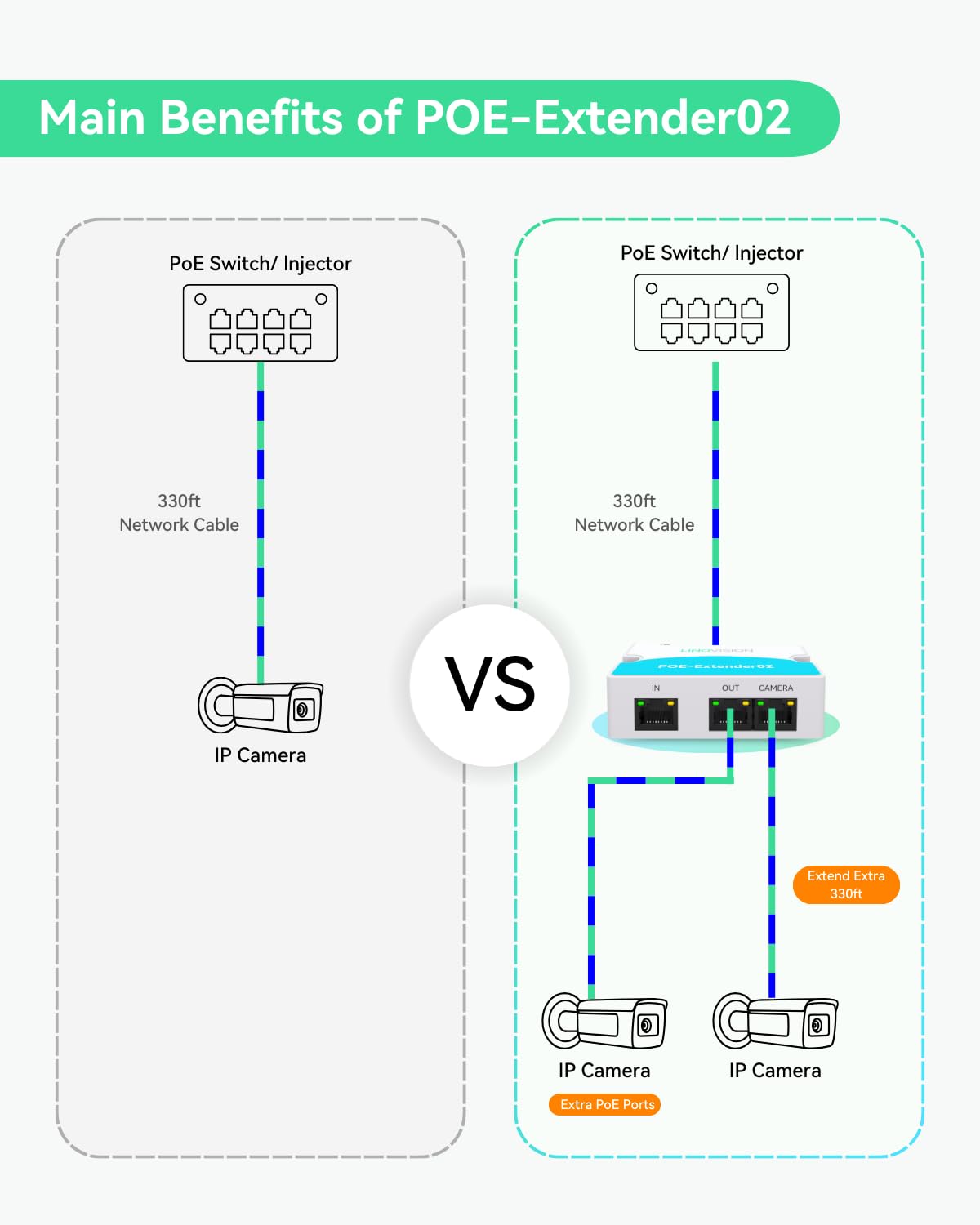

【2-PORT POE SPLITTER】This 2-port POE extender is designed to supply POE power to two POE devices through one Cat5E/6 cable, and no power adapter is required. It is powered by 48V or 53V PoE Switch/POE NVR/PoE Injector/Mid-span. With this POE splitter, users can easily add extra POE device or non-POE device to existing cable without running a new network cable.

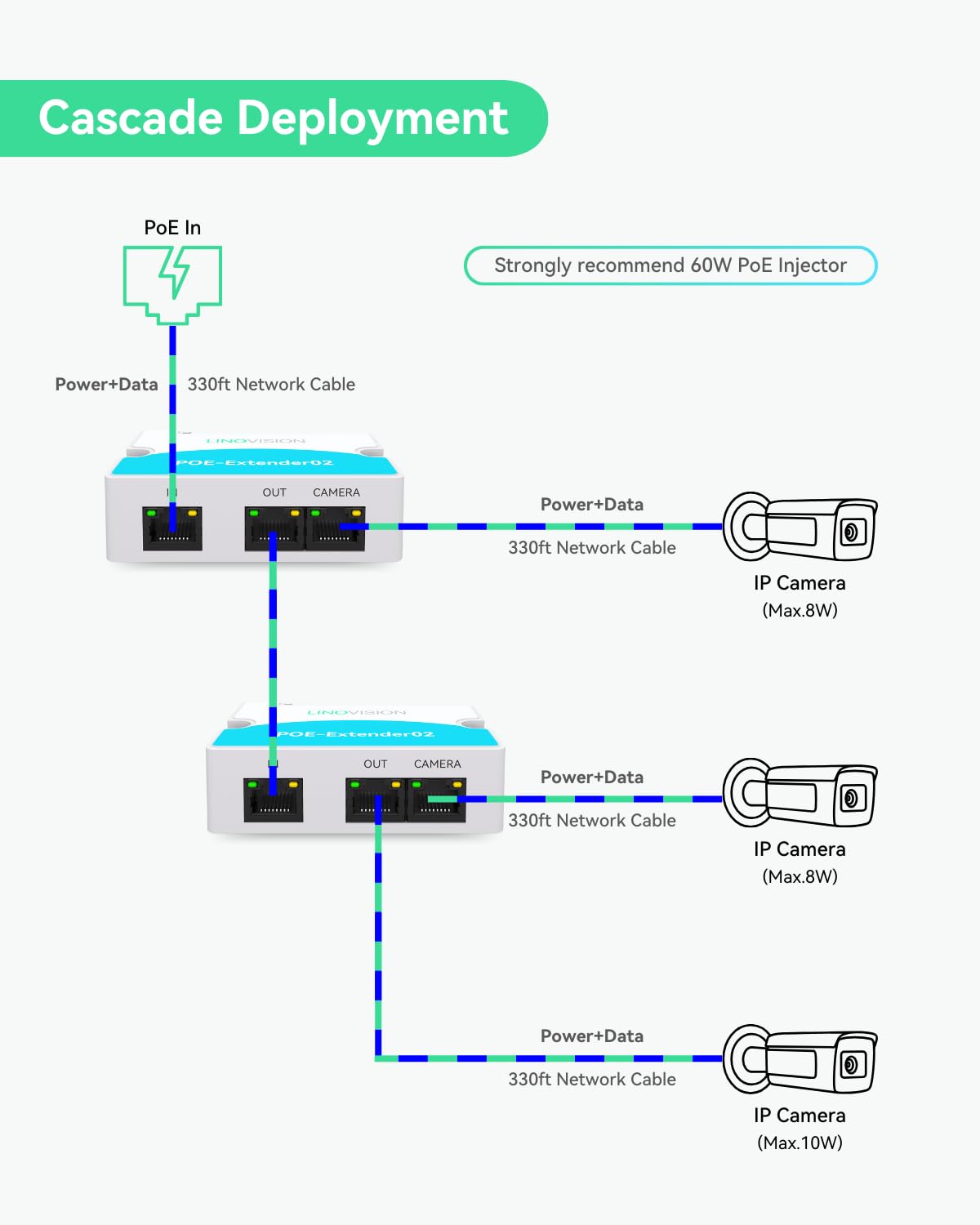

【UP TO 1,000FT POE + DATA EXTENTION】Extra 330ft POE+Data transmission will be extended with one Linovision POE Extender. And it supports two levels cascade deployment, therefore total 1,000ft POE + Data transmission is provided. (The 2nd POE Extender’s POE Input should be connected to the 1st POE Extender’s Out port, not Camera port)
【COMPLIANT TO IEEE802.3AF/AT STANDARD】This POE Extender works with all standard IEEE802.3af/at POE Switches/POE injectors/POE NVRs. And the POE Outputs supply power to standard POE devices (don't support 24V POE Devices) , like POE IP camera/IP phone/IP speaker. Noted The CAMERA Port supports max 8W power consumption and the OUT Port supports max 15W. The max bandwidth is 100Mbps. As the distance increases, the power and the bandwidth will decrease.

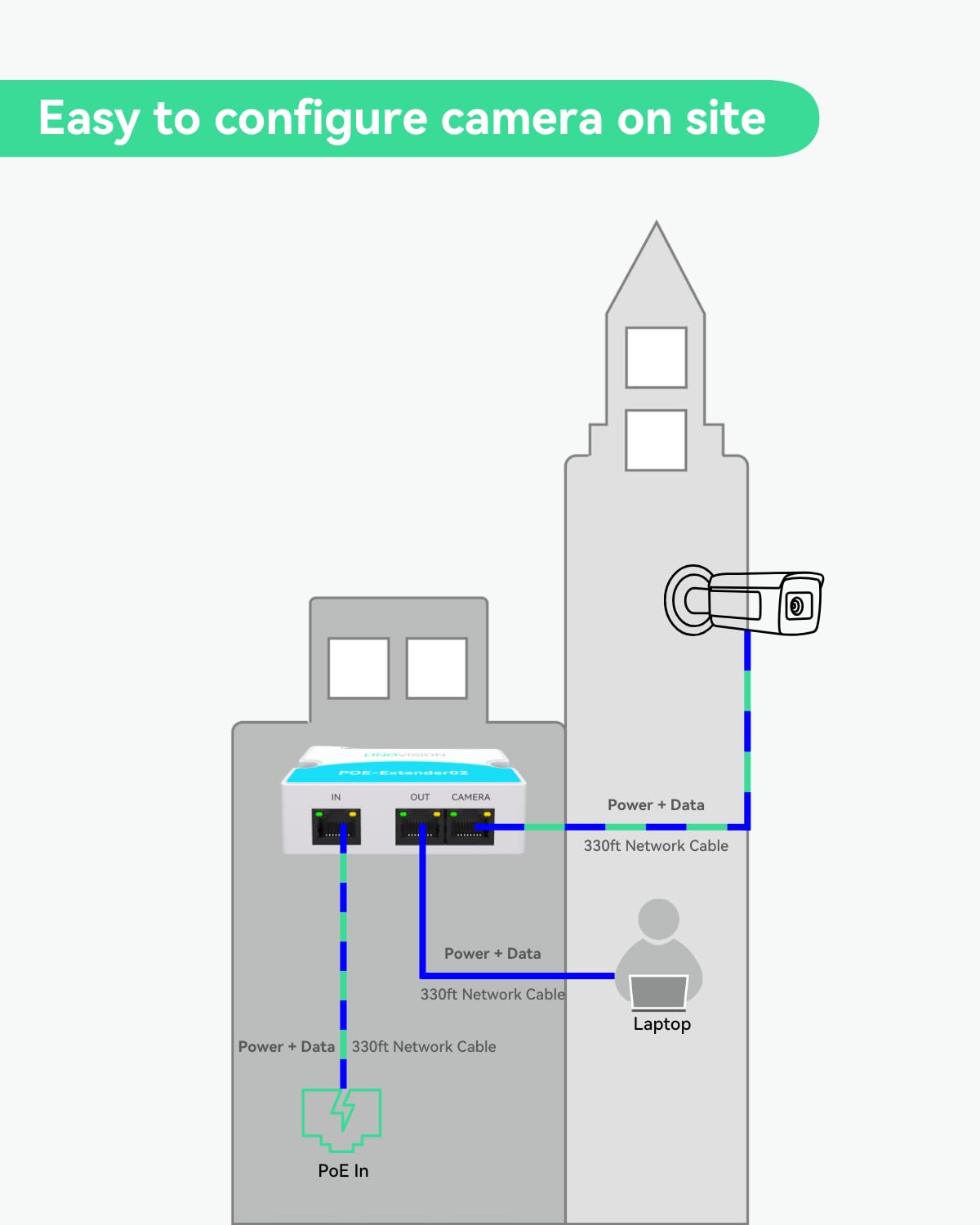

【EASY TO CONFIGURE IP CAMERA ON SITE】By interting this PoE-Extender02 to an existing PoE cable, installers can use laptop or CCTV Tester to easily adjust camera angle and configure IP

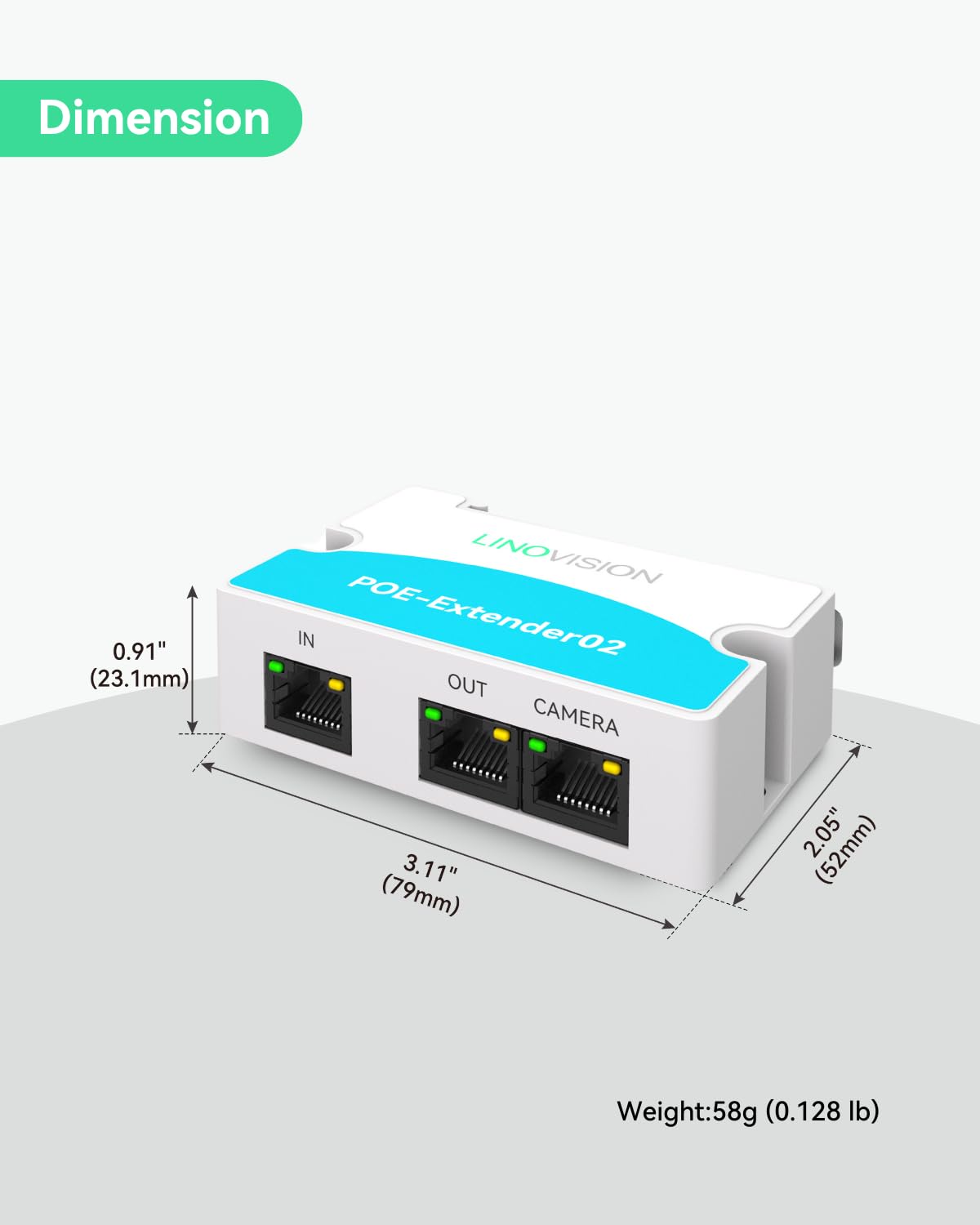

【PLUG-N-PLAY INSTALLATION】Plug-n-Play, no configuration or setup is required. With compact dimension ( 3.1”* 2” * 1”), enough to fit many junction boxes or outdoor waterproof enclosures.

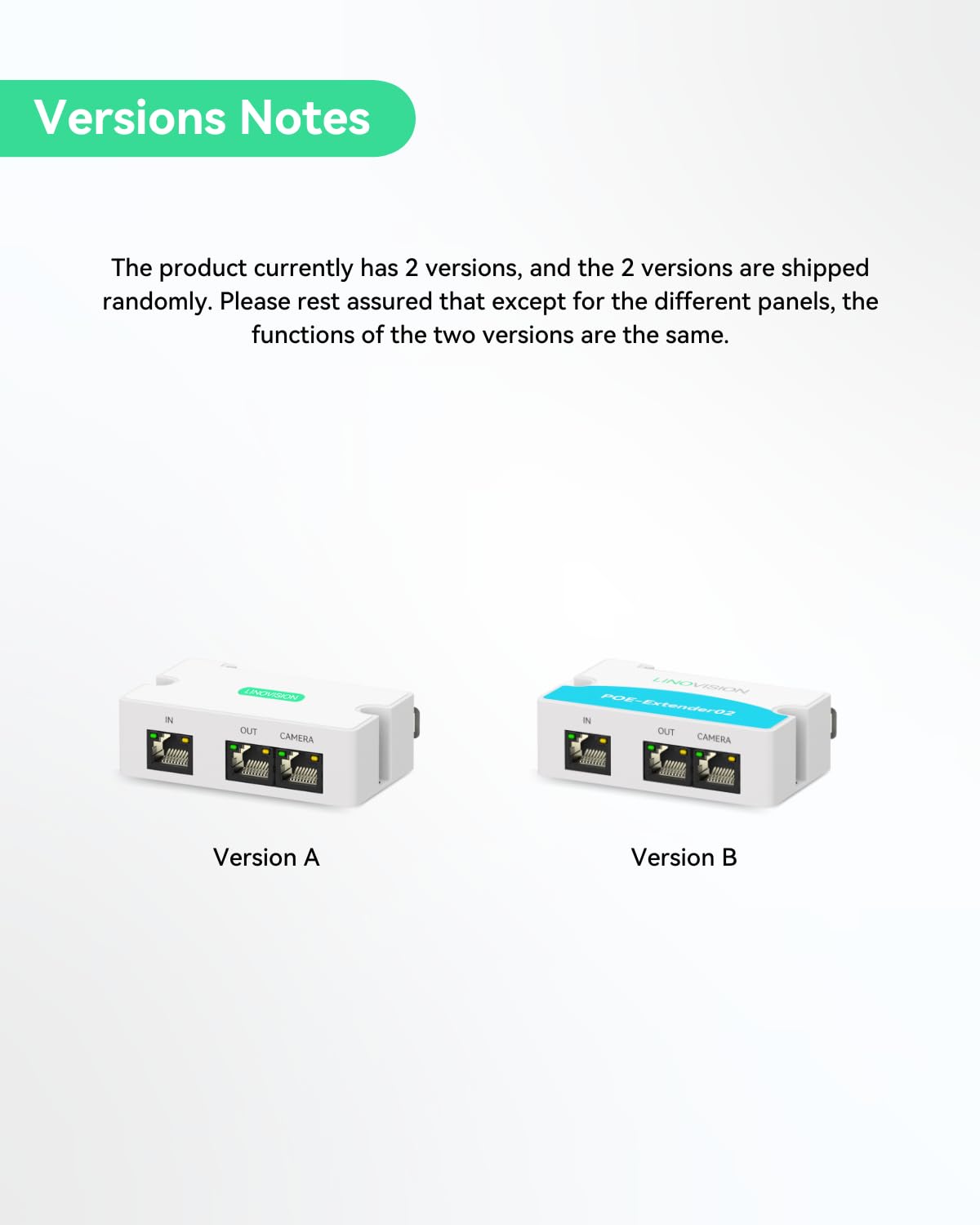

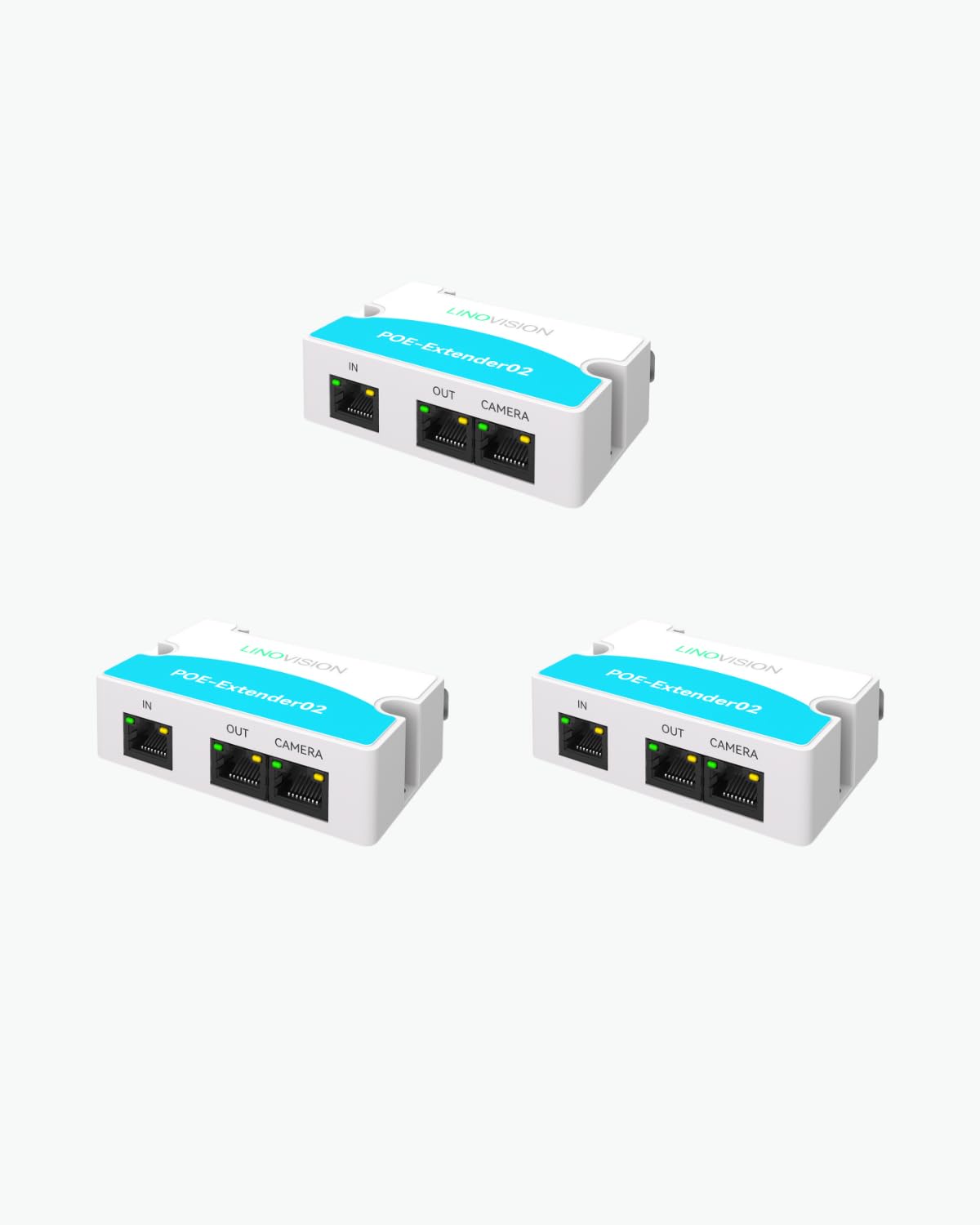

【Versions Notes】The product currently has 2 versions, and the 2 versions are shipped randomly. Please rest assured that except for the different panels, the functions of the two versions are the same.
