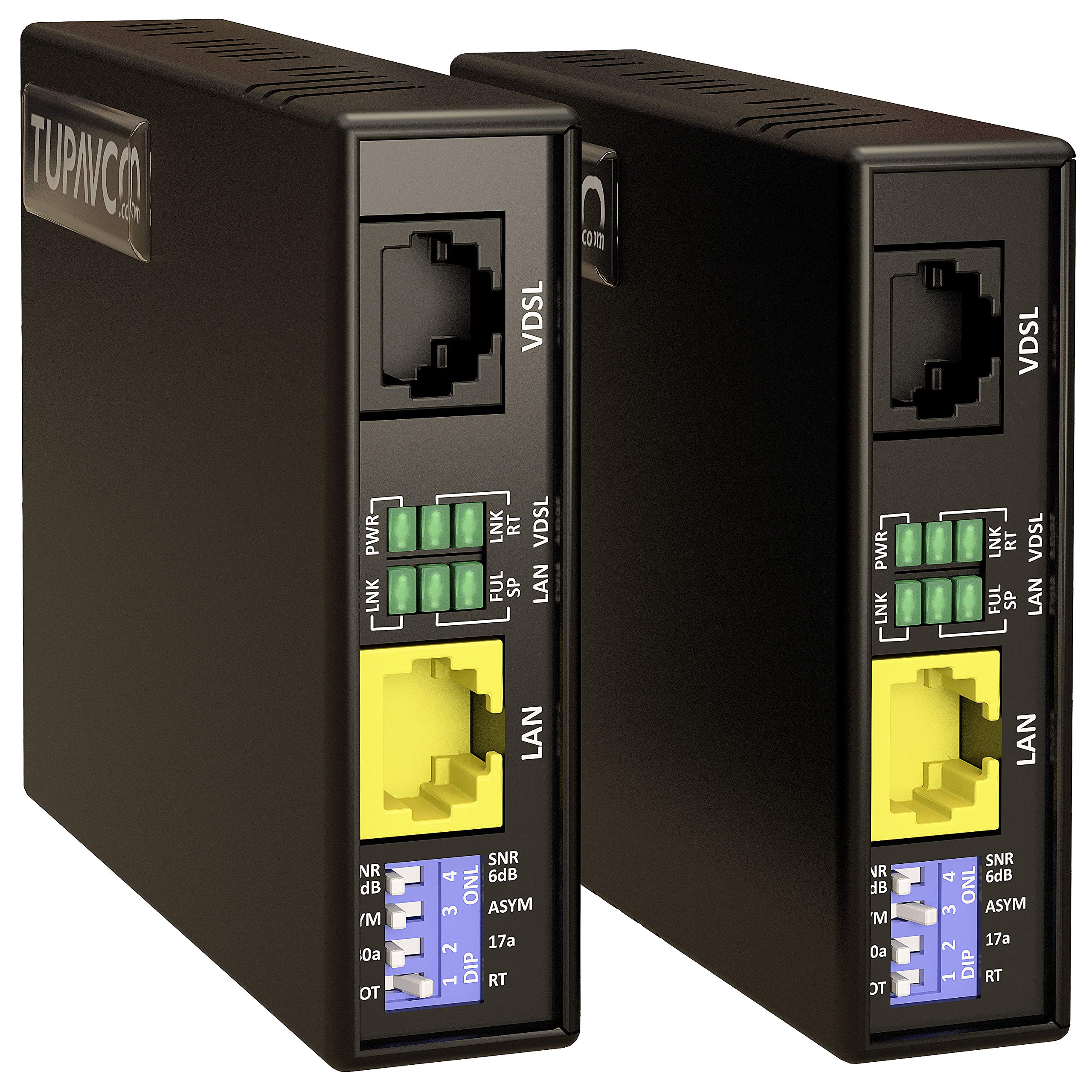

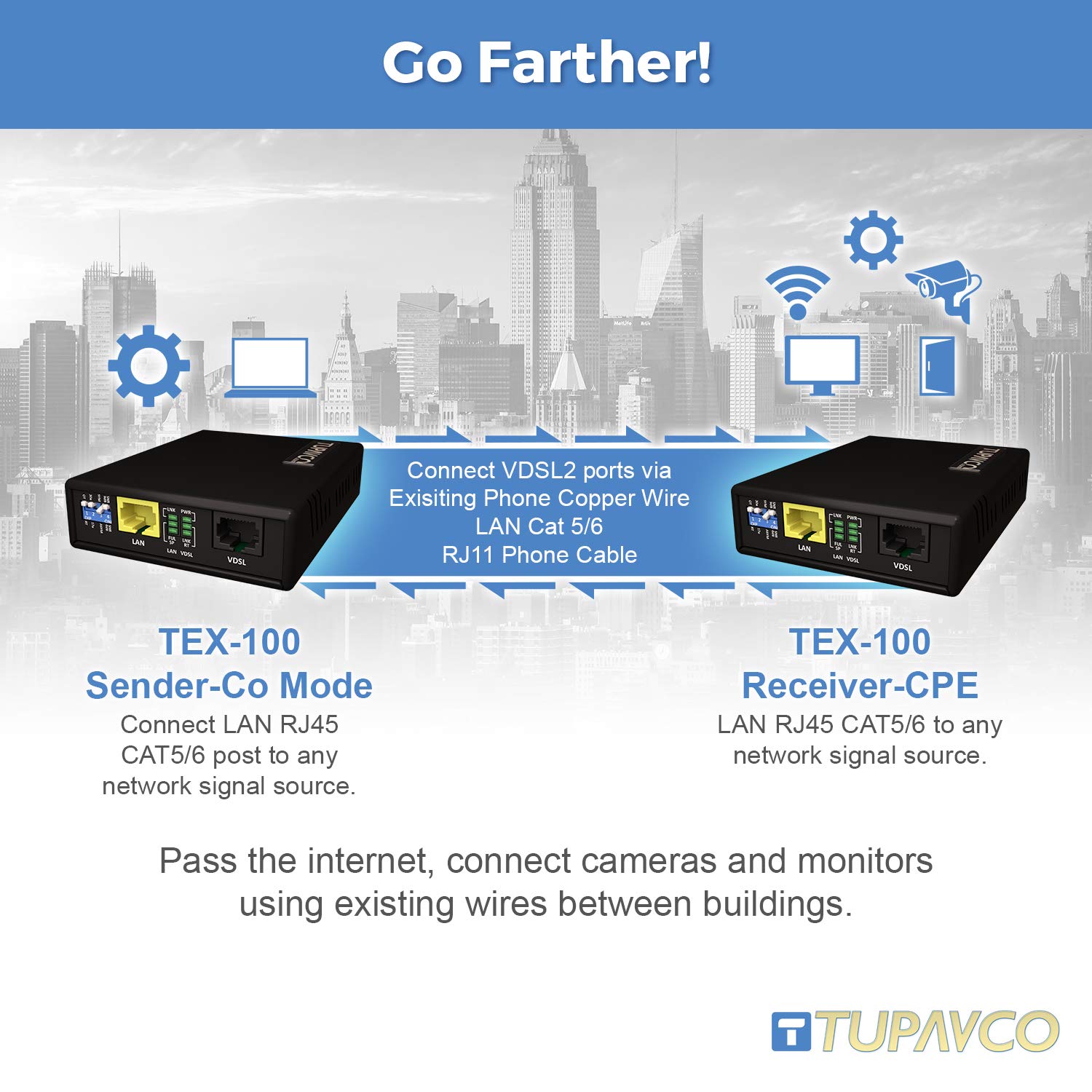

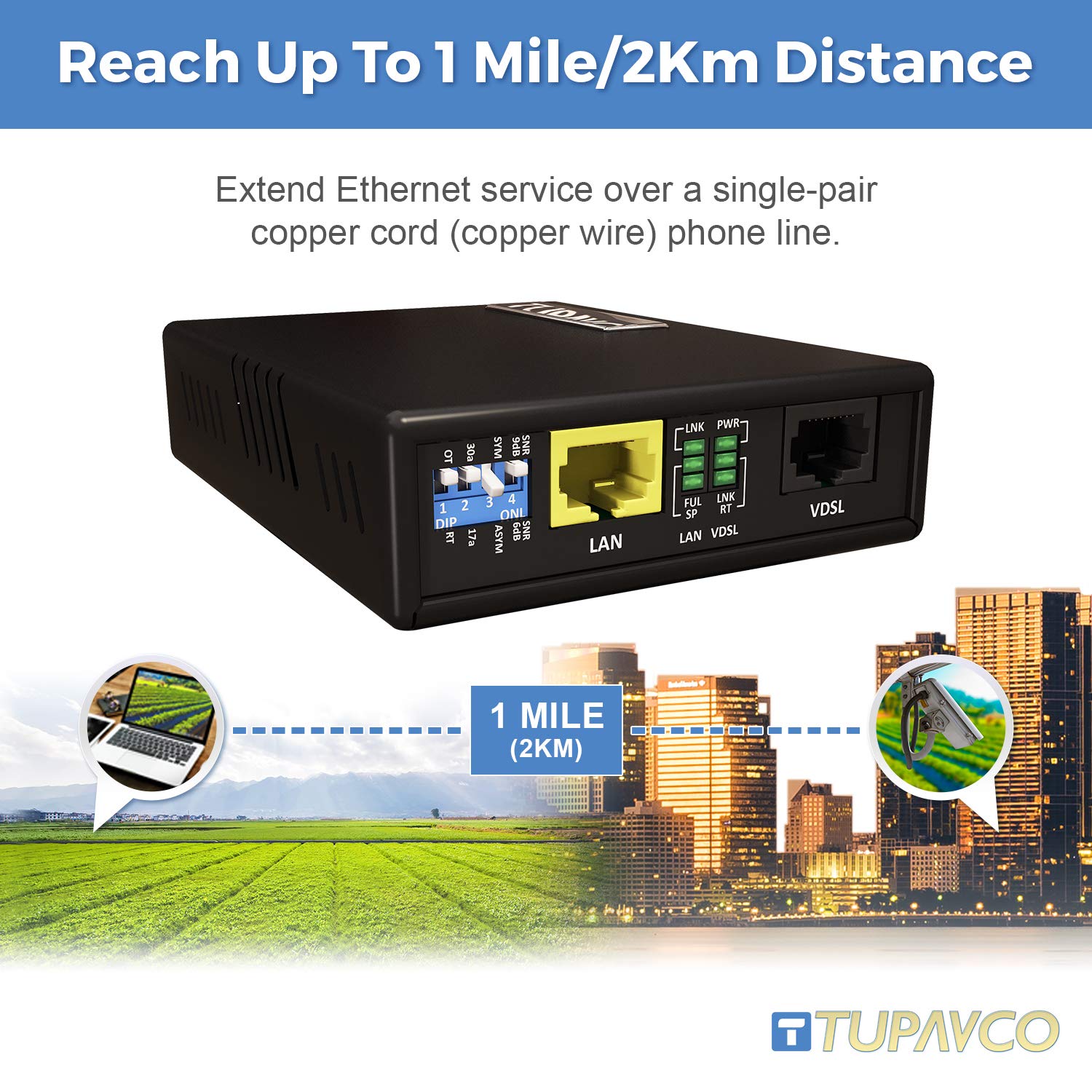

Tupavco TEX-100 Ethernet Extender Kit - Extend LAN Network up to 7000ft via Phone Line, CAT5/CAT6 Cable or Twisted Copper Wire (Pair of 2 Units) - VDSL Broadband Repeater Booster Bridge for Home, Office & Industrial Networking

Product Description

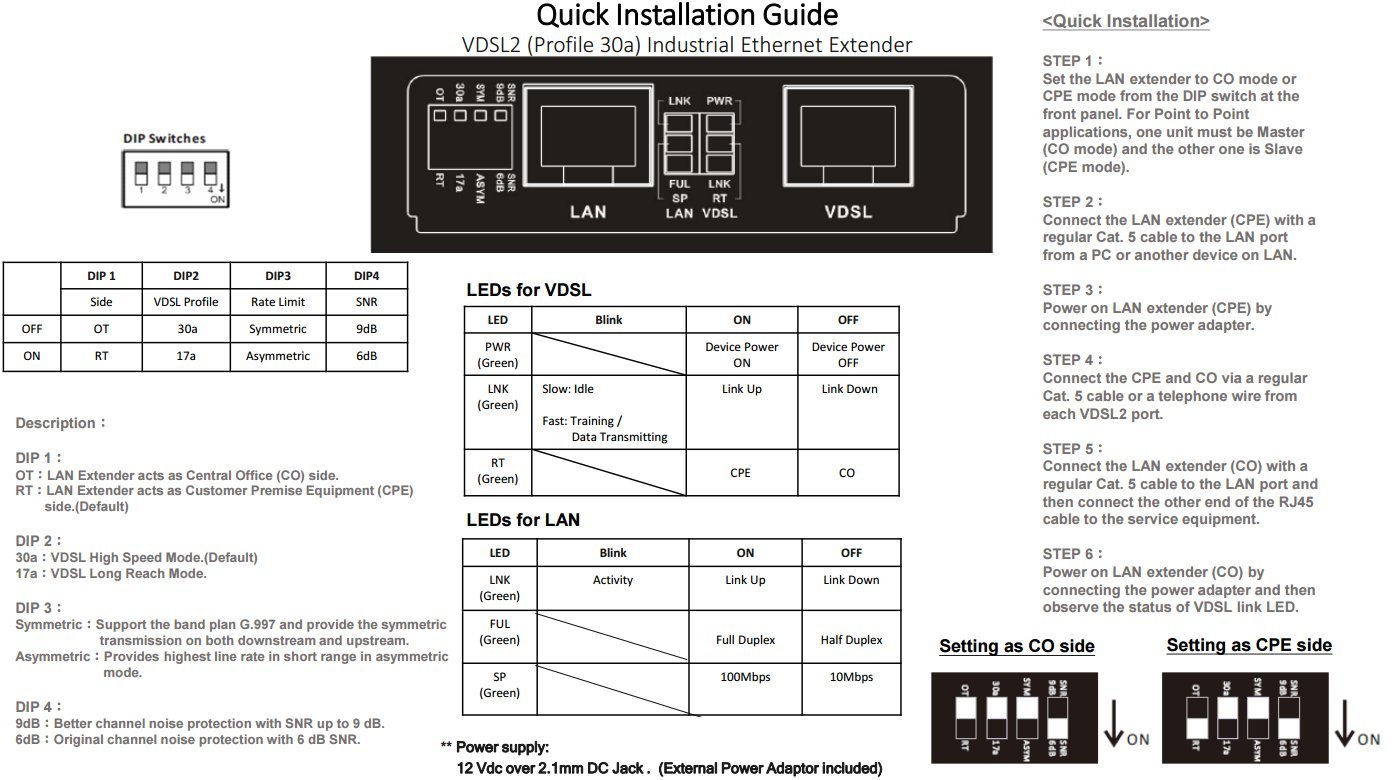

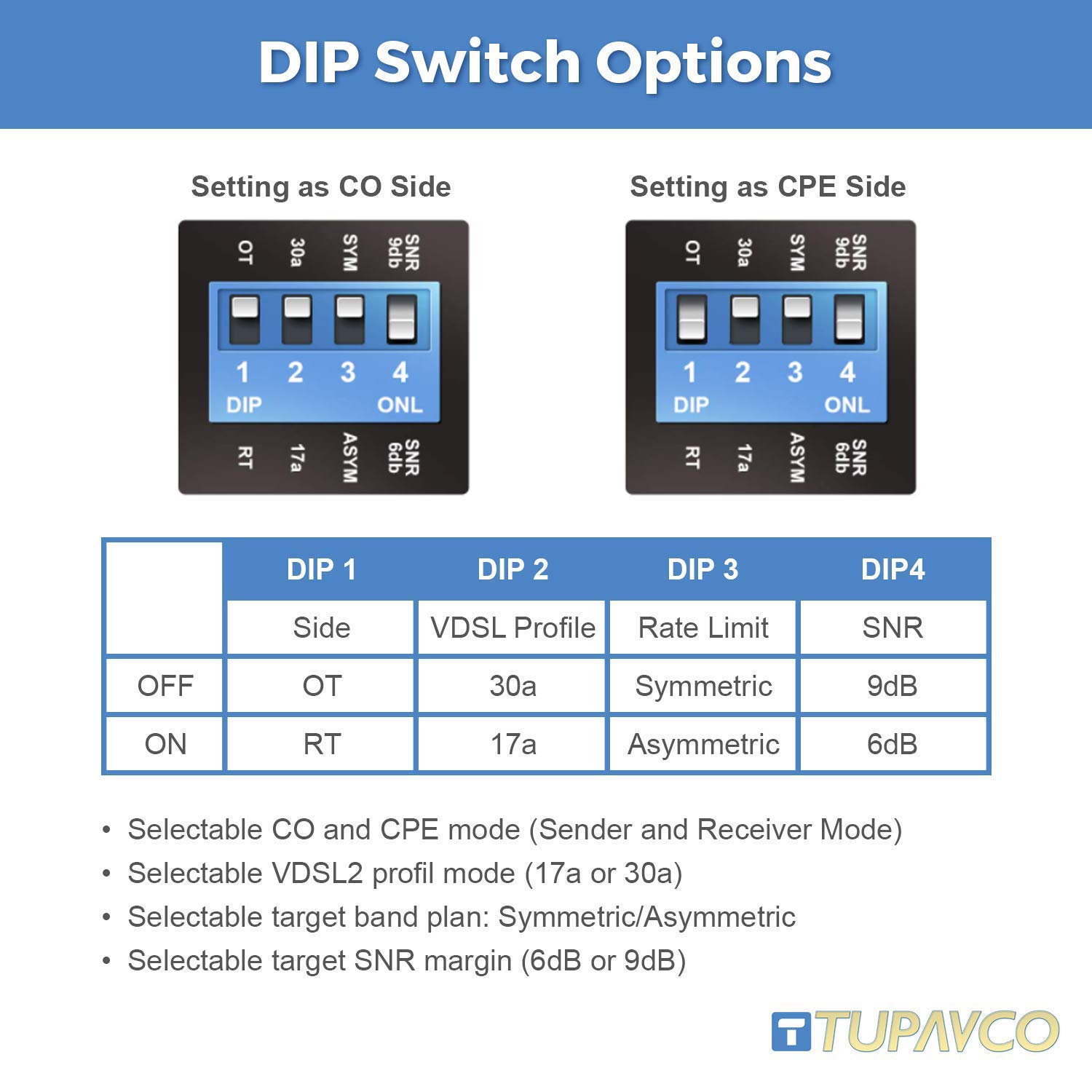

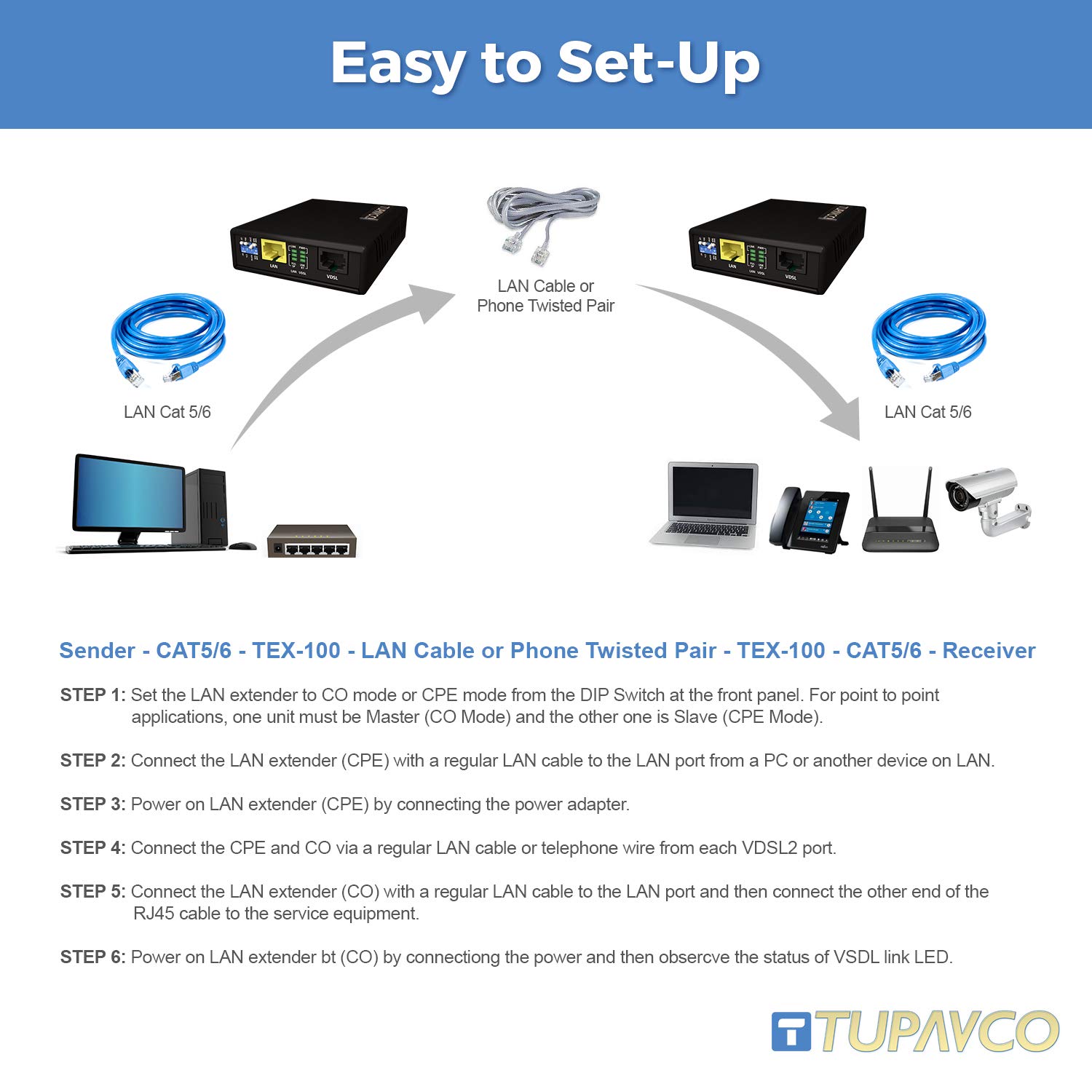

Customized for your personal network Dip switches easily set the device to ideal settings for your network needs 4 dip switches on the front panel: SNR noise margin - 6 dB for especially good connections, or 9 dB to not cut out signal on suboptimal connectionsSYM/ASYM - Symmetric mode is optimal for VoIP networks, asymmetric mode where upload bandwidth can be sacrificed for download speed30a/17a - Chooses the frequency band for operation (30a is high-speed mode, 17a is long-reach mode)OT/RT - Chooses role of device, each device should be set to opposite role (OT is CE or sender, RT is CPE or receiver) How do I troubleshoot my connection? How do I know what's wrong with it It's always a good idea to do a setup in a test environment, connecting devices with a short cable, connecting the sender to the signal source and the receiver to a laptop to verify that the parameters are right and that the laptop has a connection My connection is still not working (Troubleshoot part 2) Connect receiver w/ the long cable to see if they are faulty. Then, narrow down and test possible faults, individually with every device in your Ethernet network, replacing the simple network configuration with your real network devices one at a time Is it wireless? Can I use phone lines to connect the two devices? The device only extends the connection, and does not transmit it wirelessly. The sender and receiver still need to be connected. Yes, you can use phone lines to connect the two devices, the VDSL ports on the devices are compatible with phone cables. How to power the device? Can it be powered with PoE The device can be powered via PoE, but it cannot transmit the PoE power downstream How do install the device? There is a quick installation manual in the packaging of each device, which you can use to troubleshoot installation. It is also available as a PDF on the product photos page, and includes the function of every component of the device. Tupavco TEX-100 Technical Specifications Bandwidth 100 mbps Communication Mode Half Duplex & Full Duplex supported, indicated by LED lights Data Rate Indicators LED indicators for 10/100 mbps rates Bandwidth frequency 17a or 30a frequency profiles for VDSL2 DSLAM Compatibility 724M/708M DSLAM compatability + most of 3rd party DSLAMs Reach Up to 7000ft / 2000m SNR Margin Can be set to 6 dB or 9 dB depending on use Communication mode Can be set to either symmetric or asymmetric depending on use Previous page Increases cable range Extends your network for up to a mile via cables The TEX-100 increases your network range via cable from ~300 ft (100 m) up to a mile (2000 m) Real-time network info 6 LED lights showing current state of connection Lights show duplex mode, speed of the connection, and link status for both LAN & VDSL sides Fast & clear connection Up to 100 MBPS symmetric data speeds The device boasts SNR ratios of 6/9 dBi and full-duplex symmetric data line rates of up to 100 MBPS Next page 1 No More Distance Limits 2 LED Indicator Lights 3 Low-SNR & High-Speed Extending your Ethernet cable connection The Long-Reach Solution for Your Ethernet Network The LAN port is designed to connect to the local network, while VDSL port is designed to connect to the other TEX-100 device in the pair. The VDSL port uses a single twisted pair of wires, or any copper wiring used in telephony. The devices need to have a direct path between their VDSL ports with nothing in between them. It is also possible to run multiple pairs of TEX-100 devices using a single cable by using different twisted pairs, but cross interference is possible depending on cable quality Tupavco Network Extending Solutions Tupavco TEX-100 Extender Tupavco TEX-200 Extender Tupavco TP551 Wi-Fi Antenna Wired connection Connection is established via cable, range of 7000 ft (2000 m) Wired connection Connection is established via cable, range of 5000 ft (1500 m) Wireless connection Connection is wireless, range of 5000 ft (1500 m) in optimal conditions Fast connection speeds Speeds of up to 100 mbps Very fast connection speeds Speeds up to 300 mbps Ultra fast connection speeds Speeds up to 400-600 mbps RJ-45 connector Both device ports have an RJ-45 jack that can support 10/100 base internet RJ-45 connector (Gigabit) Both device ports have an RJ-45 jack that supports Gigabit 10/100/1000 base N-female connector Antenna comes with N-female connector for signal forwarding Good signal protection Target SNR 6/9dB (setting dependent) signal protection Great signal protection G.INP/Interleaved, Target SNR 6/8/12/24 dB (setting dependent) signal protection No signal protection No signal protection measures Configured via 4 dip switches Customizable between 17a and 30a, Symmetric/Asymmetric and configurable SNR Configured via 4 dip switches Customizable between 17a and 30a, Symmetric/Asymmetric and configurable SNR No configuration settings No available configuration settings for the device
