SKU:51108244

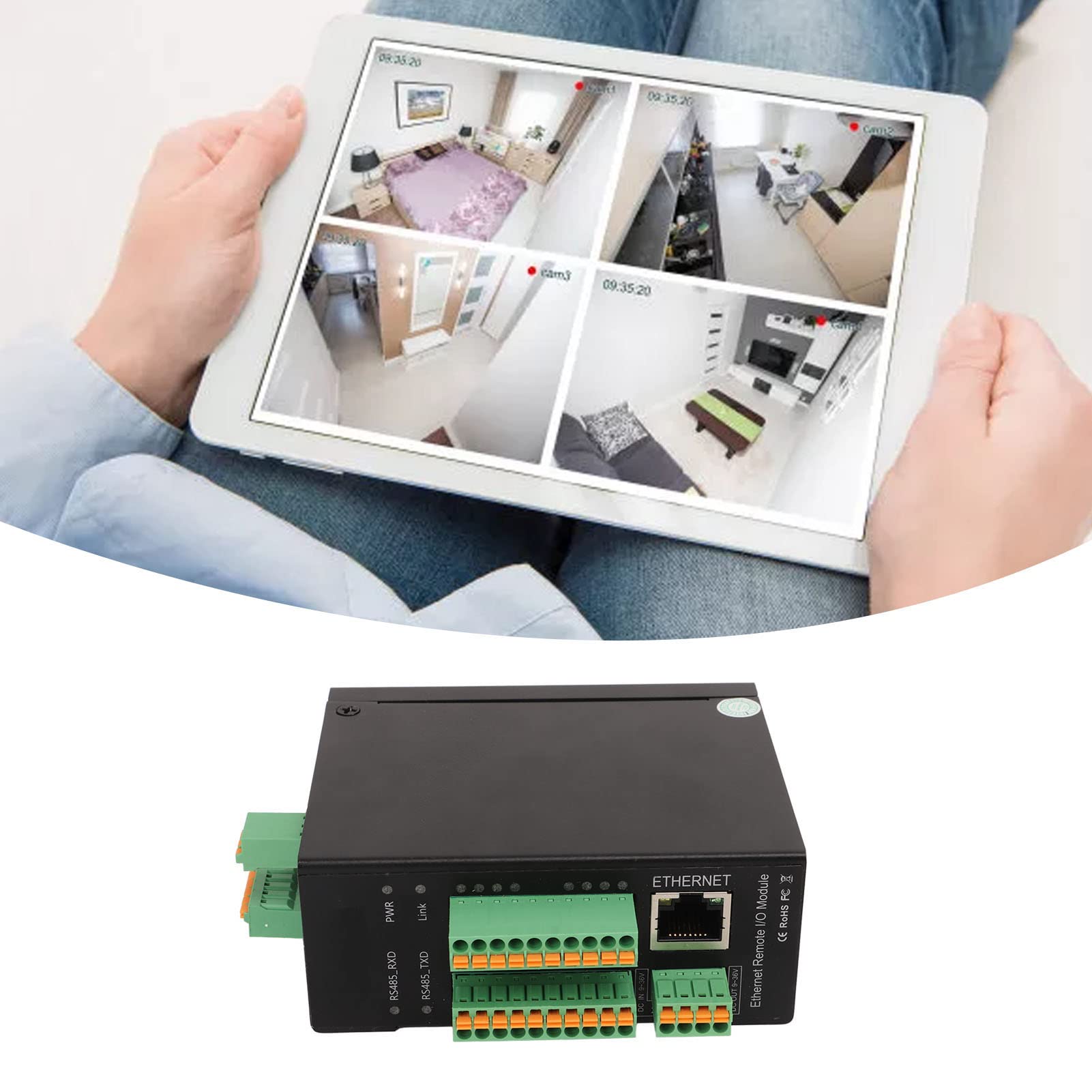

Specification: Item Type:Ethernet Remote IO Module Material: metal. Interface: Ethernet port x 1, RS485 x 1, DIN x 1, AIN x 8, DO x 8 Output power: DC x 1 Operating voltage: 9-36VDC. Analog current: 4-20 mA. Plug specification: AC 100-240V. Power supply: Input voltage: Unsupported AO output: 9-36VDC Support AO Output: 24-36VDC Power consumption: typical standby power consumption: ≤ 2 W. Use: 1. Connect to routers, switches, HUBs and other connection switching devices via direct cables or to PCs and other devices via crossover cables and make sure the device and computer are on the same local network; 2. Connect the 9-36 VDC power supply to the power port of the device, the PWR light lights up and the device completes the initialisation process within a few seconds; 3. On the PC, open the configuration software, click Device Search to find the device, double click on the found device and enter the password to log in (the default password is 1234). After the password has been verified, you can set the parameters. PackageList: 1 x Ethernet data acquisition module. 1 x rail buckle. 3 x screws. 1 x power supply. 1 x user manual card.
COMPATIBLE PROTOCOLS the communication protocol uses the standard Modbus TCP protocol, Modbus RTU over TCP protocol and MQTT protocol to meet the requirements of a variety of work networks and greatly improve efficiency
INPUT PERFORMANCE The module supports 8 digital input channels (DIN), 8 digital output channels (DO) and 8 analog input channels (AIN). - Size and light weight, easy to install in tight spaces
PROTECTION FUNCTION 1-channel RS485 communication interface for expansion. Large operating voltage of DC9-36V with reverse polarity protection, supports 8 channels digital input (DIN), 8 channels digital output (DO), 8 channels analogue input (AIN)
EASY MAINTENANCE The data acquisition module can be managed and configured via LAN connection configuration software, which is easy to use and maintain. On the module there are LEDs that indicate the operating status and a reset button for reset, which is convenient for on-site installation and debugging
IP30 PROTECTION LEVEL Metal housing, IP30 protection level, metal housing and system safety insulation, especially suitable for industrial control field applications. If you have any questions about the product, please contact us
