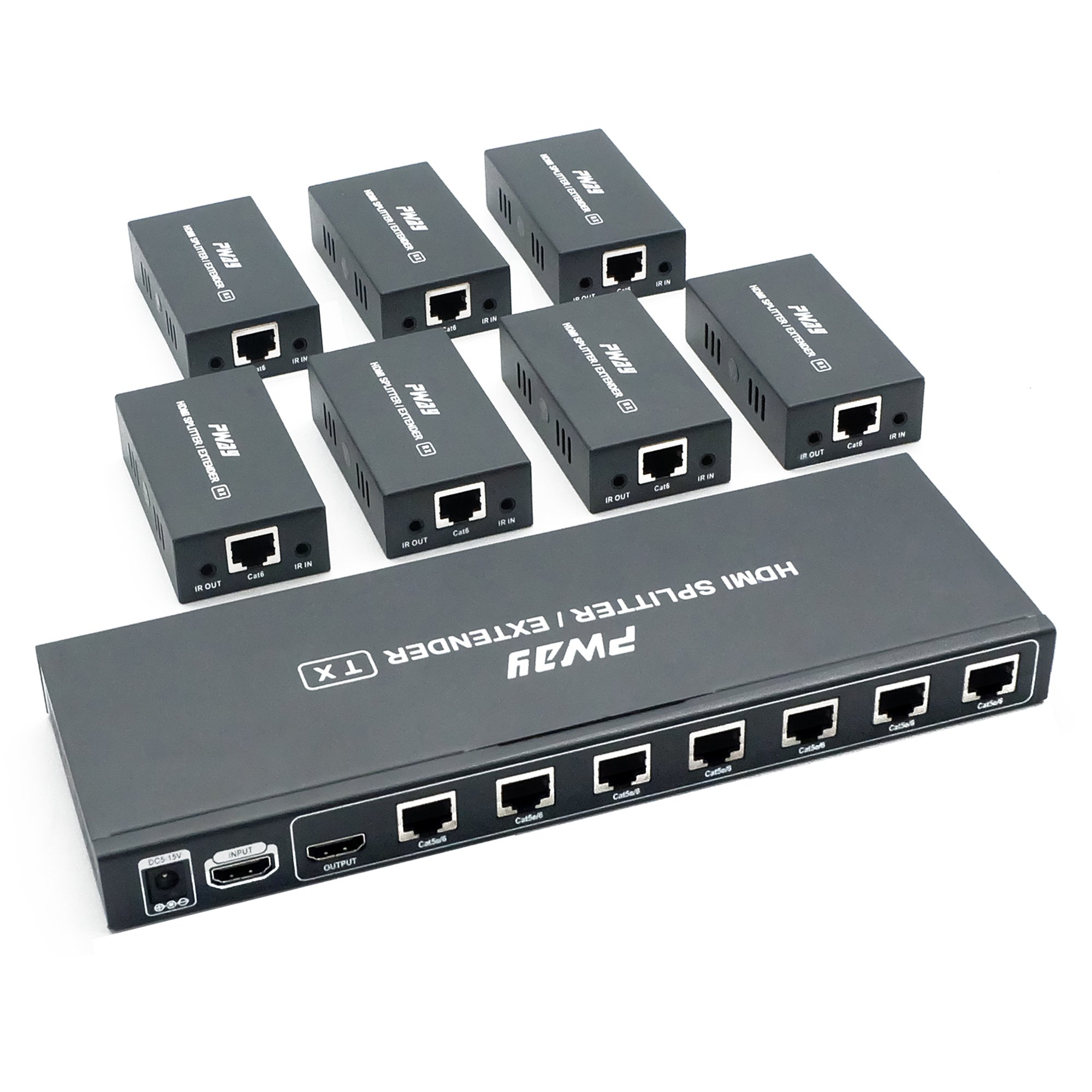

PW-HTS0107IR HDMI Splitter Extender 1x7 Port - 1080P HD Video Over Cat5e/Cat6 Ethernet Cable with IR Remote Control, No Delay up to 60m (196ft) - Perfect for Home Theater, Conference Rooms & Multi-Screen Displays

Product Description

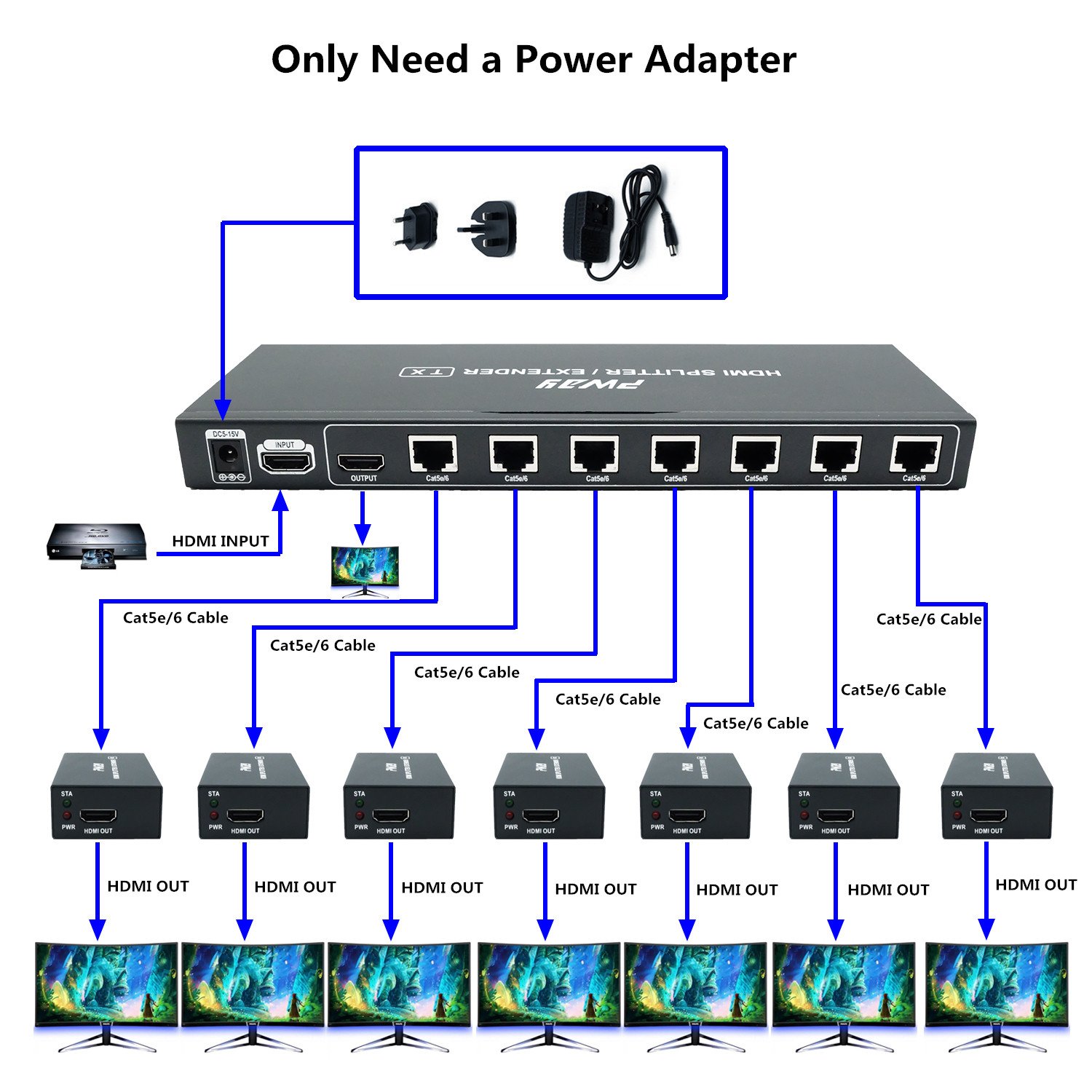

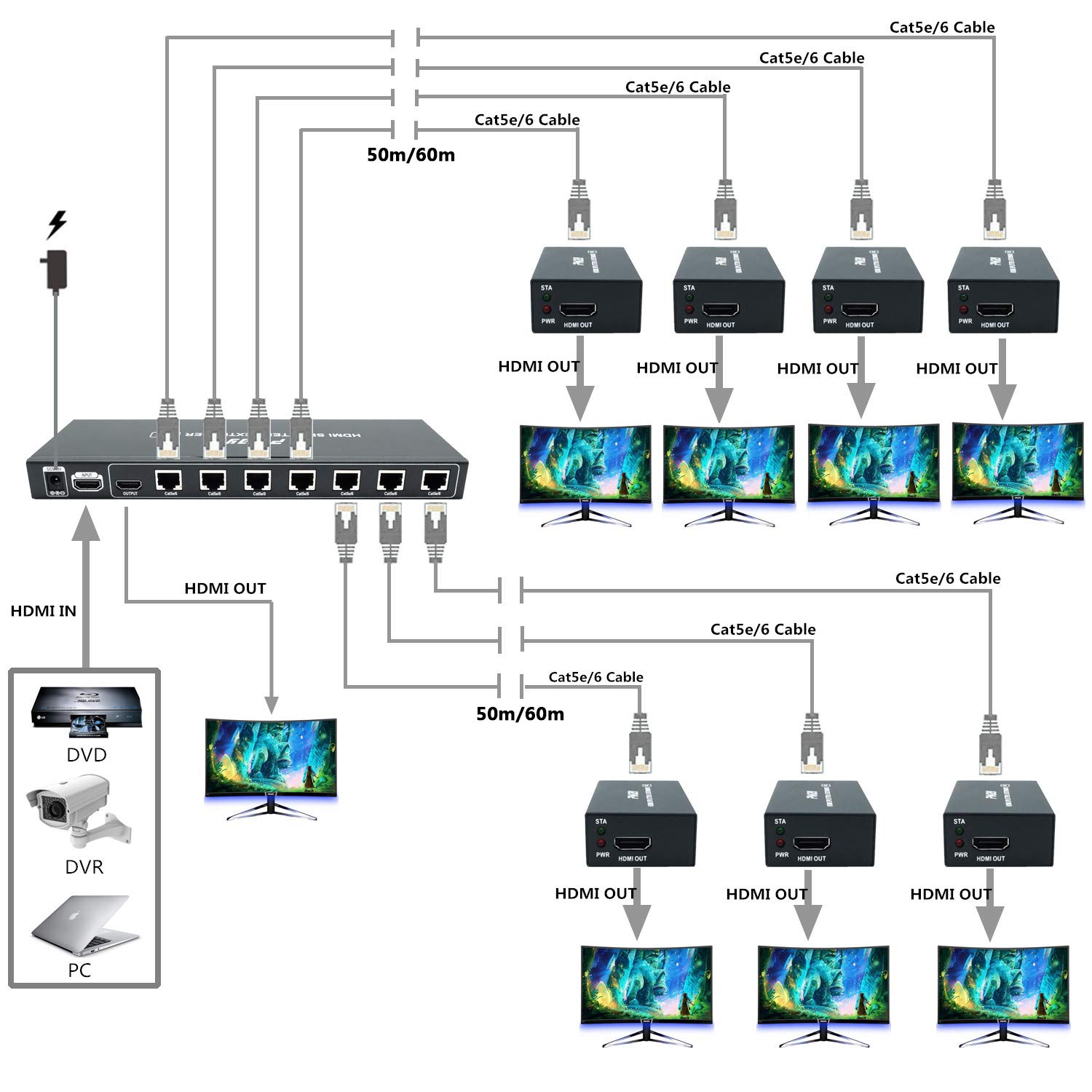

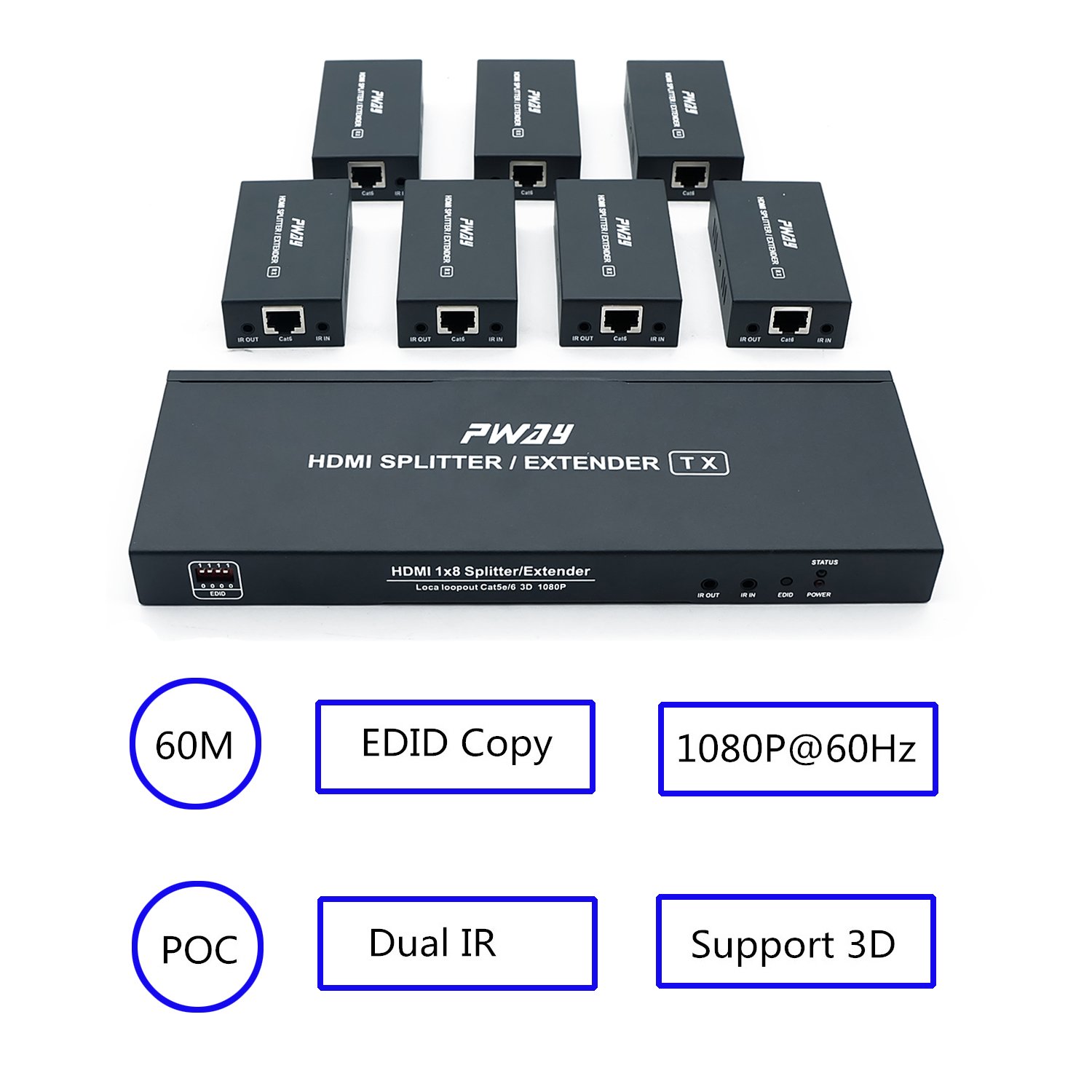

The HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable, transform one channel input to 8 channel output, it supports high resolution up to 1080p and 13 kinds of EDID mode. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security. Reverse infrared: The remote control is aimed at the infrared receiver (black square head) at the receiving end of the device, which can control the volume output of the HDMI source or change the output channel, etc., but cannot control any settings of the display.Special Note: The red head infrared must be close to the infrared receiving area of the HDMI source.Forward infrared: The remote control is aimed at the infrared receiver (black square head) of the transmitter of the device, which can control the volume of the display or adjust the image settings of the display, but cannot control the setting of the HDMI source.Special Note: The red small head infrared must be close to the infrared receiving part of the display. What should I do if the image of the monitor is not normal? Connect the power to the transmitter of the deviceUse the HDMI cable to connect the transmitter to the display.Press and hold the EDID button for 3-5 seconds. Features: The green light flashes rapidly during the learning process. When the green light stops flashing, it means the EDID learning is completed.
