GT200-EI-2RS485 Modbus to EtherNet/IP Protocol Converter Gateway - Industrial Automation & IoT Communication Solution for PLC, SCADA, and Smart Factory Systems

Product Description

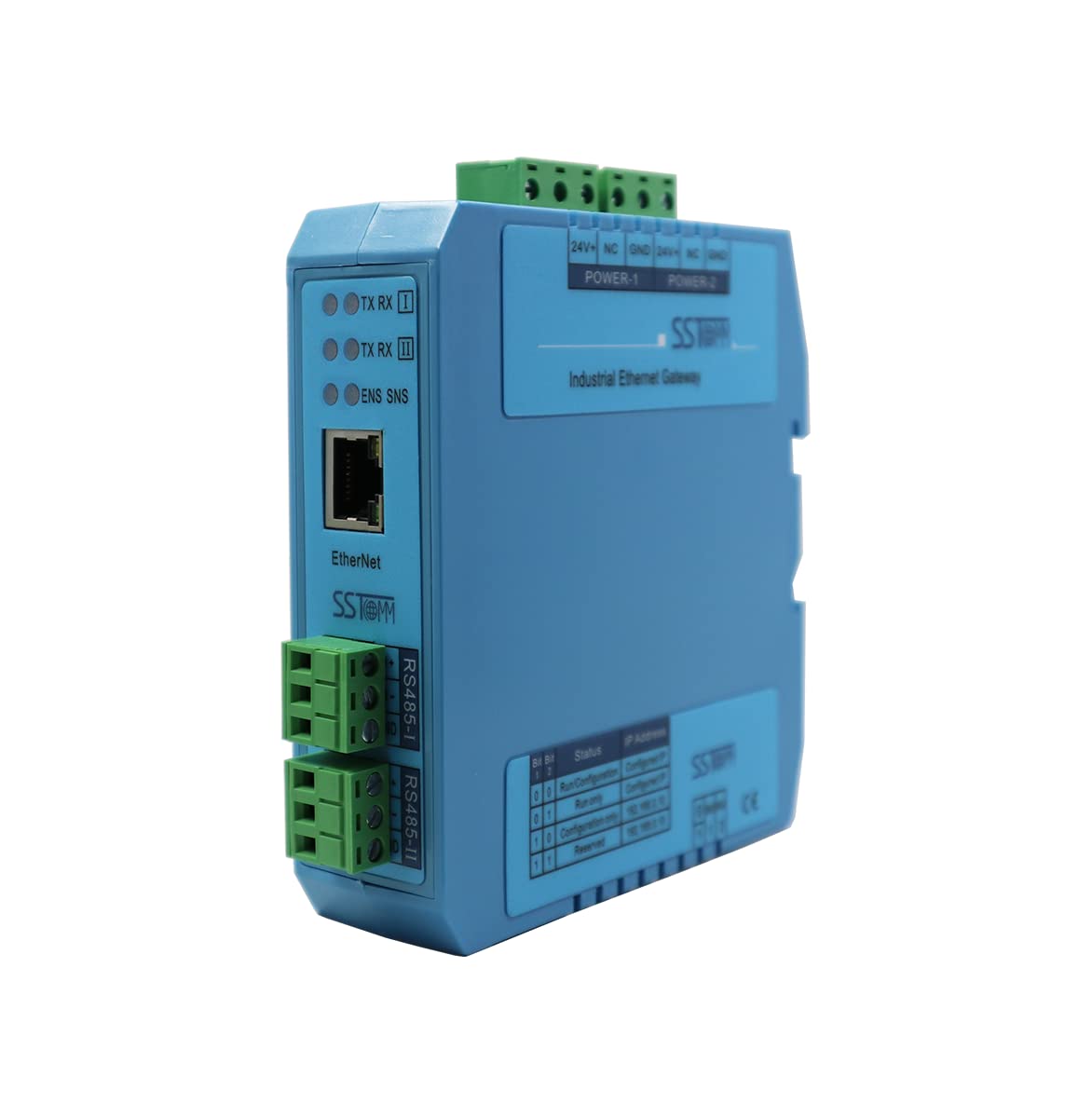

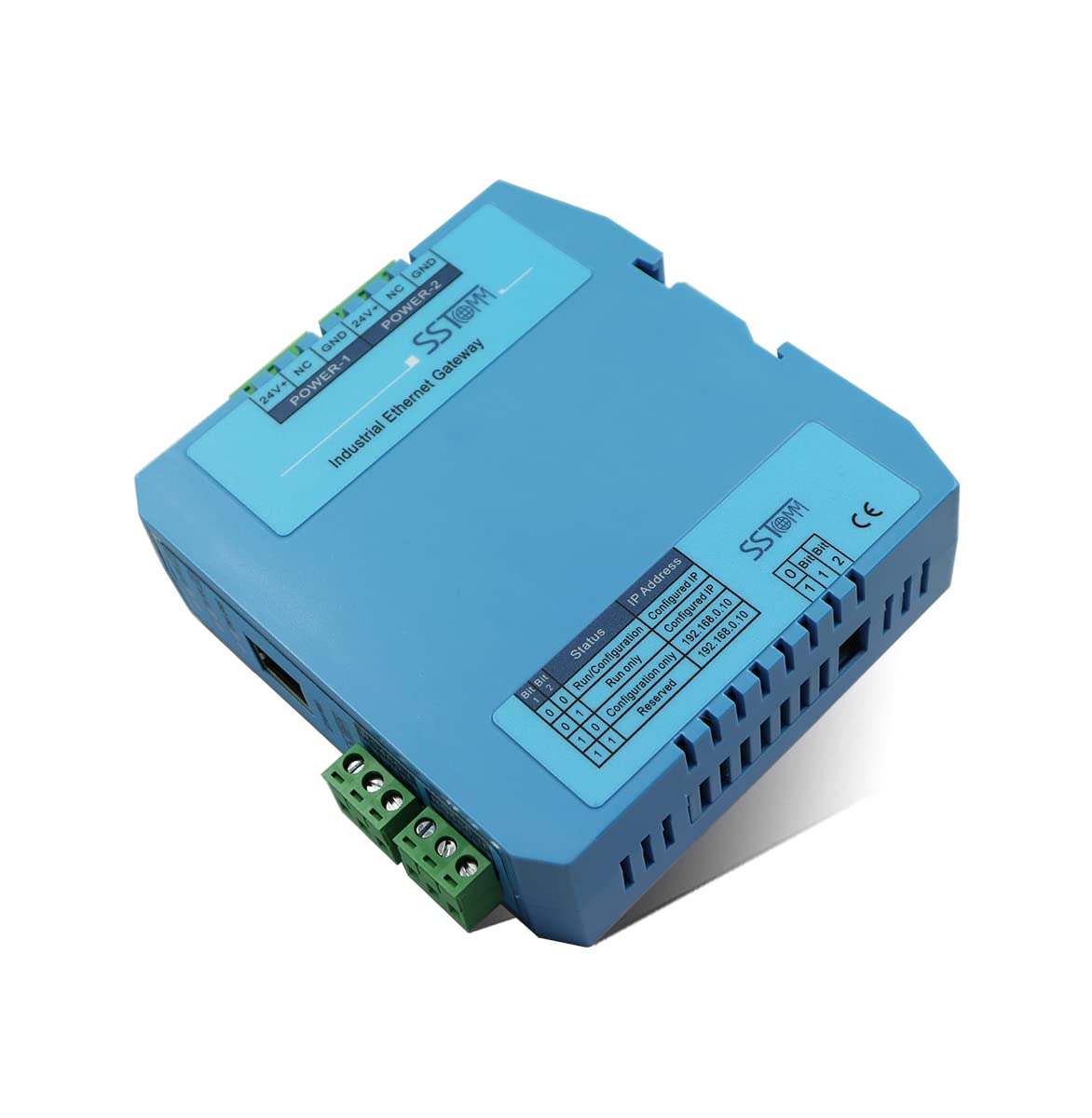

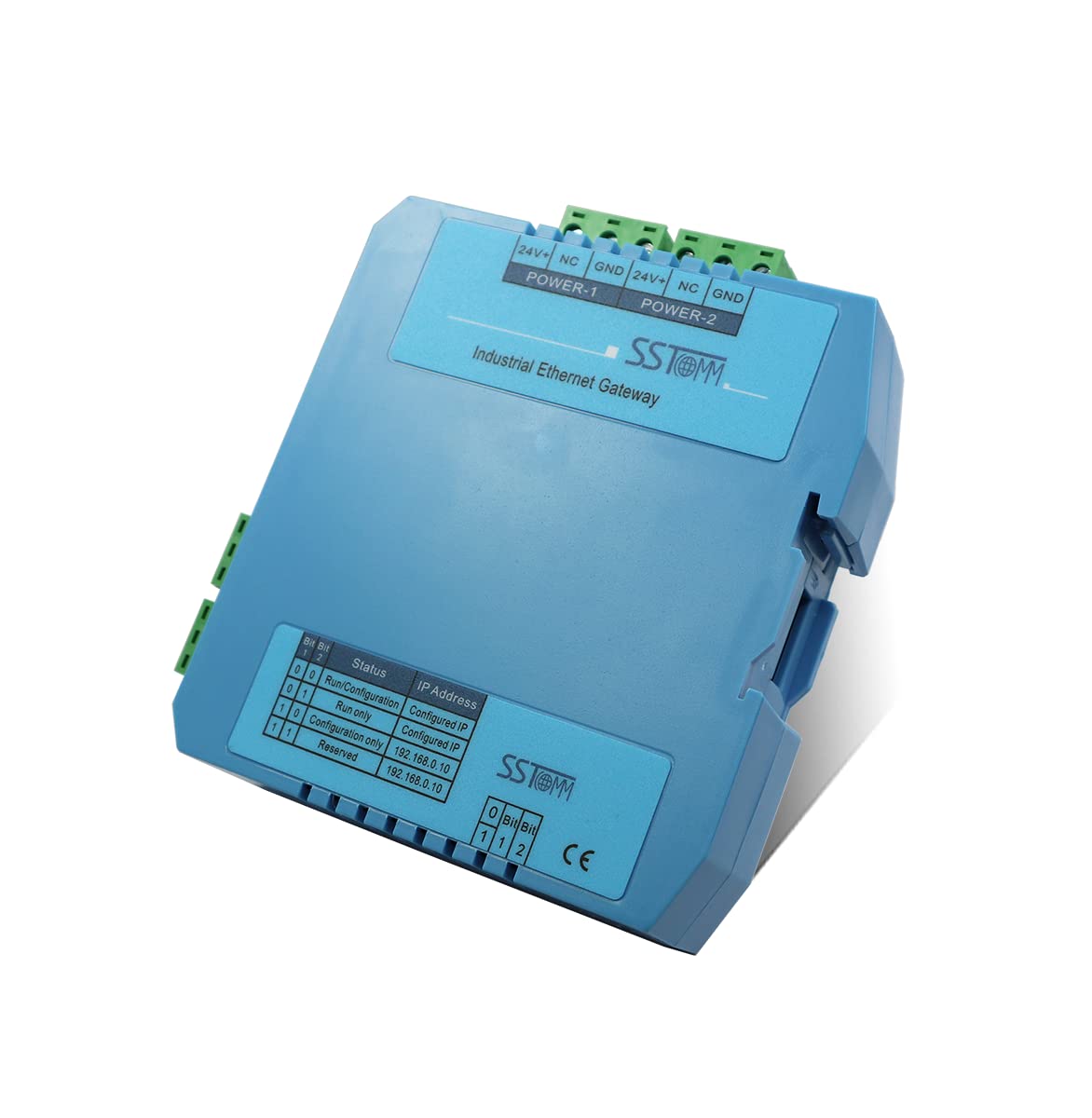

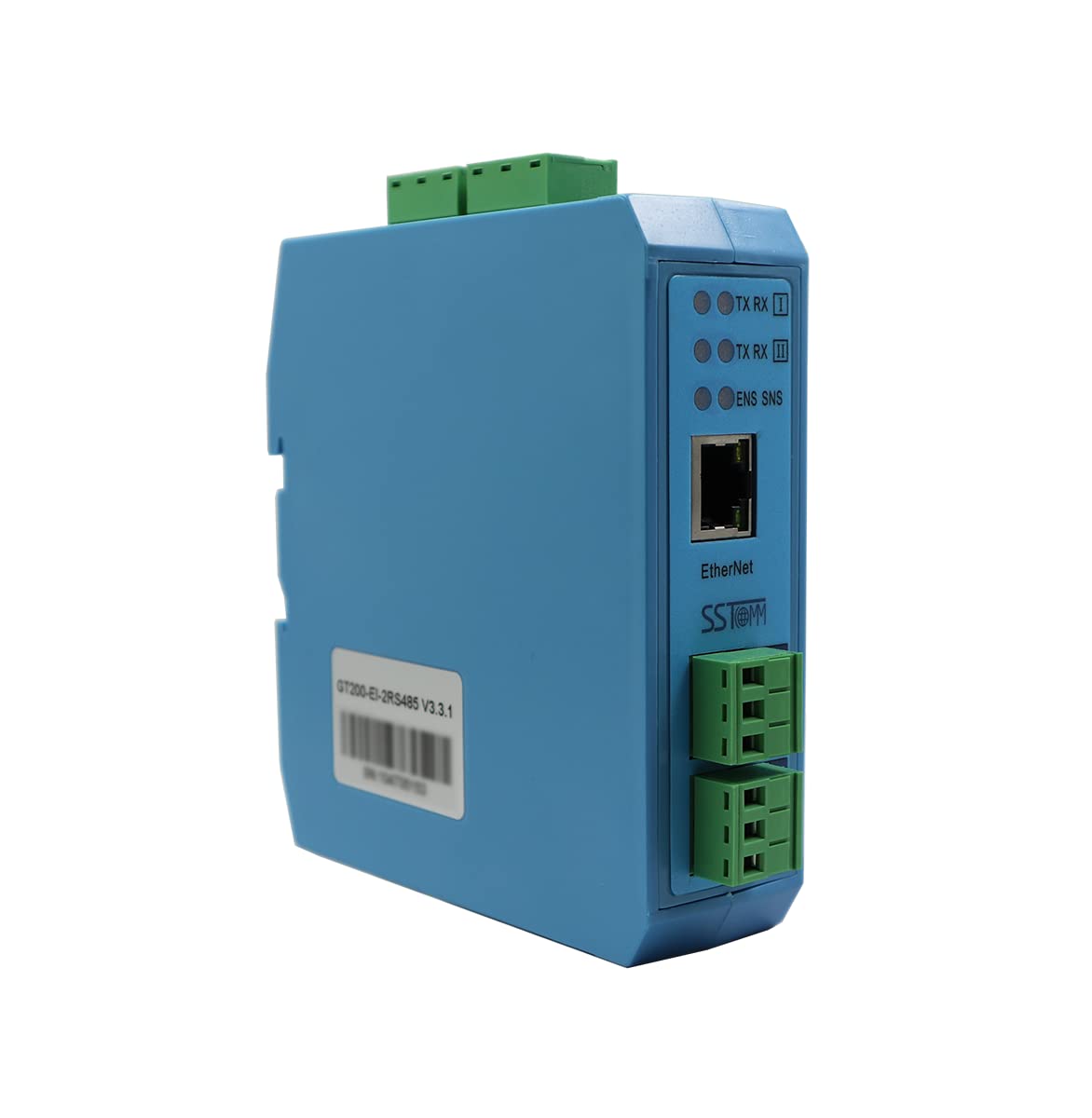

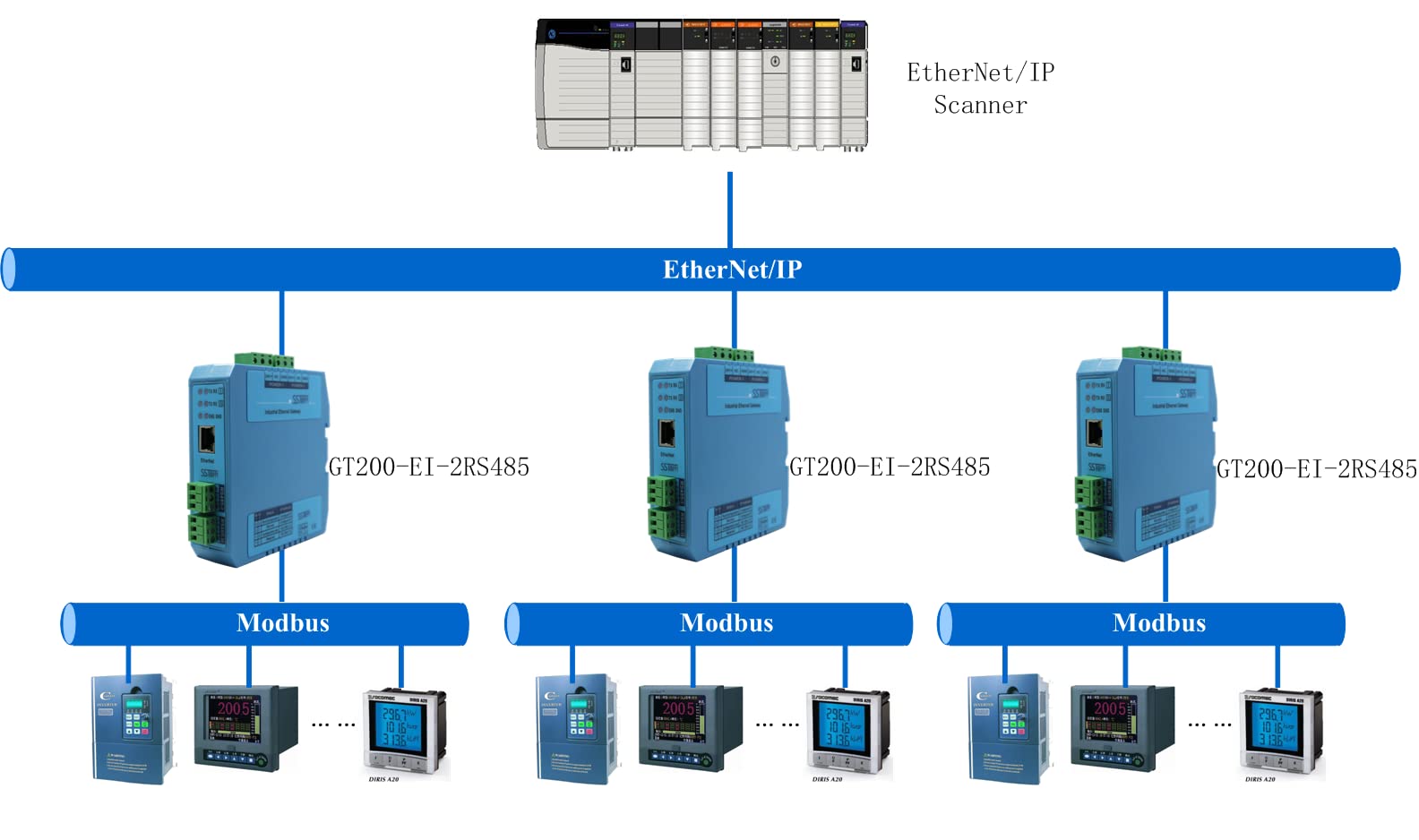

The GT200-EI-2RS485 is an EtherNet/IP to Modbus gateway. It provides a seamless connection between multiple Modbus slave devices and the EtherNet IP network. This gateway has 2 RS485 serial interfaces and acts as a Modbus RTU master and EtherNet/IP adapter. EtherNet/IP network is independent with two Modbus networks. Ethernet 10/100M adaptive. Supports IP addresses conflict detection function. Supports the ODVA Standard EtherNet/IP communication protocol. Two serial RS-485 interfaces, half-duplex, and baud rate support: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200; parity support: none, odd, even, mark, space; 1 or 2 stop bits. GT200-EI-2RS485 acts as master at the side of Modbus network: Supports 01H, 02H, 03H, 04H, 05H, 06H, 0FH, 10H function codes, can be configured up to 48 Modbus commands for each RS-485 interface; Modbus function codes 03H, 04H, 06H and 10H support the "Byte Swap" function, and it can help users solve the problem of data format between two different networks. The maximum number of input and output bytes of EtherNet/IP: Maximum number of input bytes: 492Bytes. Maximum number of output bytes: 492Bytes. Power supply: 24VDC (11V ~ 30V), 90mA (24VDC). Working temperature:-4°F to 140°F (-20°C to 60°C); Rel. Humidity 5%-95% (non condensing). External dimensions (W*H*D): 1.33 in*4.56 in*4.21 in (34mm*116mm*107mm). Installation: 35mm DIN rail. https://sstcomm.com/Products/EtherNet_IP/Modbus_EtherNet_IP/GT200-EI-2RS485.html
