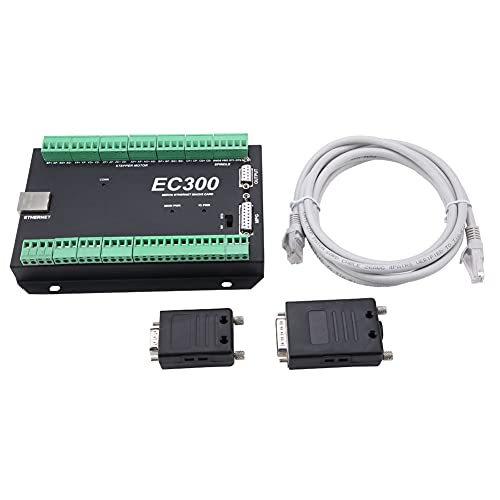

The EC300 is a high performace external motion controller for Mach 3 software, with Ethernet interface supporting standard MPG and Digital Dream MPG; The device can communicate with a connection to a control computer's network; The network connection can be built with direct connection or via router/Swith devices Features:1. Mach3 stepper motor, motion control 3-6 Axis(X,Y,Z,A,B,C) for option, max frequency output 300kHz/Axis2. Motion control card, ethernet Connection with Mach 3 Software3. Breakout board CNC controller Board, main power supply 24VDC, Current should higher than 1A4. Ethernet motion control board, IO Power is 24VDC power supply input,current should higher than 1A(The controller already supply the power for IO port,no need the external power supply for IO port anymore)5. Ethernet motion controller, 12 opto-isolated digital input ports,10 opto-isolated digital output ports6. 1 analog output port of 0-10V adjustable speed for spindle (can change to PWM output port)7. ARM motion control chip,Two Relay output. Compatible with Standard MPG and also Digital Dream MPG Specification:Options: 3/4/5/6 AxisPower supply: 24VDC >1AMax output frequency: 300kHz/AxisDimensions: 17.1*10.6*32mm / 6.7*4.2*1.2inWeight: 778g/27.4oz Package List:1 * Motion Control Board1 * Connection Cable2 * Terminals
Supports Standard MPG and Digital Dream MPG: EC 300 is a high-performance external motion controller for Mach 3 software, and the Ethernet interface supports standard MPG and Digital Dream MPG
Connection to and Communication with the Network: The device can communicate with the connection of the control computer to the network. You can build a network connection directly or through a router / Swith device
Supply Power: Motion control 3-6 Axes (X, Y, Z, A, B, C) (optional), maximum frequency output 300 kHz / axis. Ethernet connection with Mach 3 software. Main power supply 24VDC, current must be higher than 1A. The IO power supply is a 24 VDC power input and the current must be greater than 1 A (the controller already supplies power to the IO port, no external power is required for the IO port anymore)
Durable and Sturdy Shell: This Mach3 controller system adopts metal shell, which possesses strong anti-interference ability, the excellent EMC design of our 6 axis controller ensures the long servicing life
Mainly Used: Our metal shell DC 24V motion controller is mainly used for Mach3 with Ethernet interface communication, so this control system will be an ideal choice for users to possess and use
