SKU:82158589

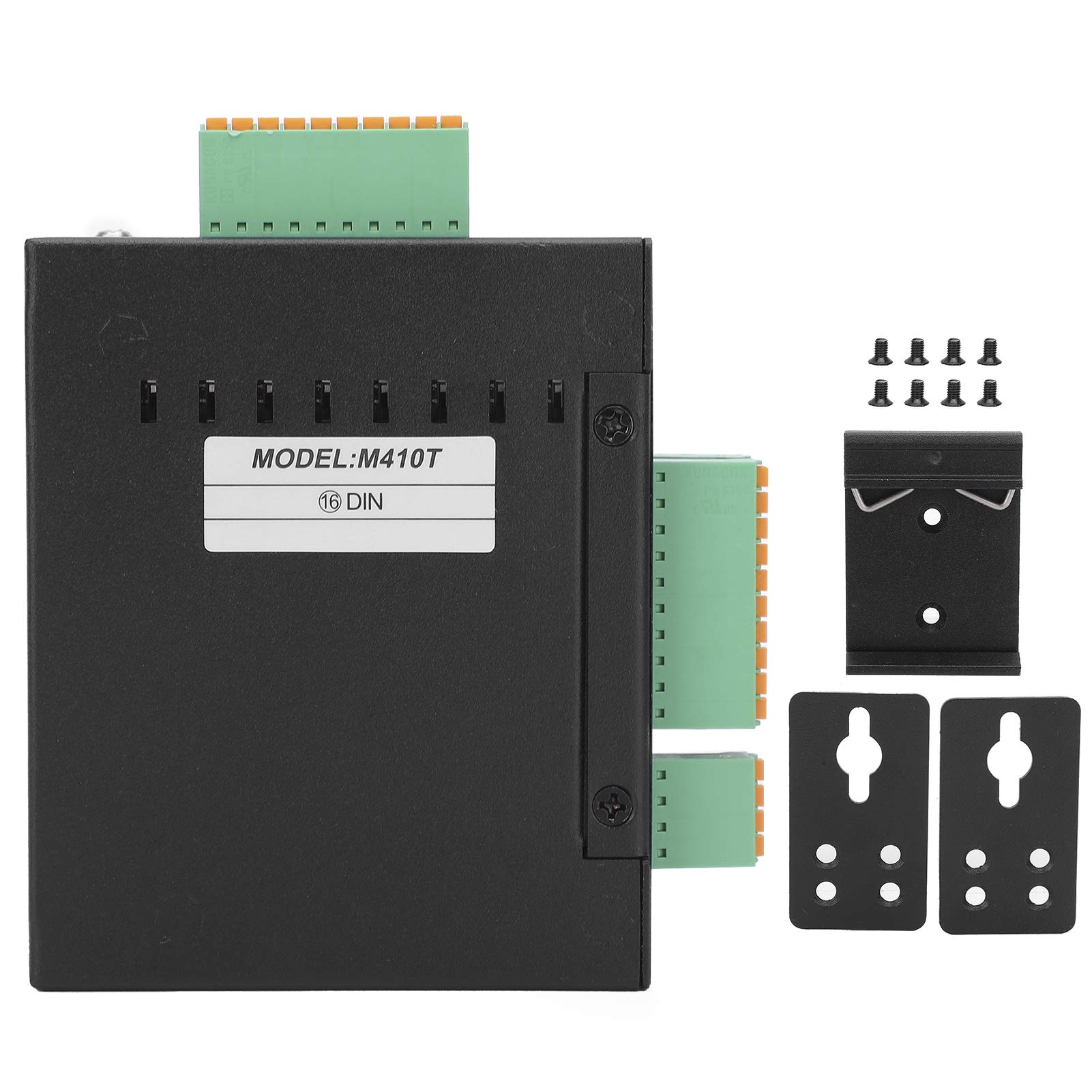

Specification: Item Type: Ethernet Remote IO Module Material: Metal Size(LxWxH): Approx. 82 x 40 x 99mm/3.2 x 1.6 x 3.9in Typical Applications: Intelligent agricultural temperature and humidity data collection and monitoring; intelligent breeding temperature and humidity data collection and monitoring; temperature and humidity data collection and monitoring in warehouses and libraries; data collection and monitoring of weather station information; cold storage, fruit and vegetable storage rooms , industrial computer rooms, transformer cabinets and other temperature monitoring; other occasion where monitoring points are scattered; data transmission of solar monitoring systems, data collection and transmission of charging piles; data transmission of ATM, POS, electricity meters, PLC, DAQ and other equipment; smart grid data collection and control; Intelligent traffic data collection and control; Industrial automation data collection and control; Environmental protection data collection and control Ethernet: Ethernet Port Specifications: 1 x RJ45, 10M/100Mbps Network port protection: ESD contact: 8KV, surge: 4KV (10/1000us) Protocol: RTU, TCP, MQTT Package List: 1 x Ethernet Data Acquisition Module 1 x Rail Mounting Accessories Pack 1 x Manual Scan Download Card
Wide voltage operation: DC9-36V wide working voltage, and has anti-reverse protection function. It uses industrial-grade 32-bit chips and has complete lightning protection and anti-interference measures to ensure reliability.
Safe use: 1 isolated 10/100M adaptive Ethernet interface with 15KV ESD protection. The unidirectional DC power supply is output to other devices on site, reducing the difficulty and cost of on-site wiring. 1 RS485 communication interface, supporting standard RTU protocol for expansion.y.
Multi-function support: support 16-channel digital input (DIN). Support DIN2‑DIN12 as a low-speed pulse counter, you can set the anti-shake time to 1‑2000ms, the default value is 1ms, and the corresponding pulse frequency is up to 1KHz.
Good compatibility: optocoupler isolation digital input, support wet contact input (dry contact is not supported), the first channel can be used as pulse counting, support high-speed pulse and low-speed pulse mode, the default is the maximum high-speed pulse frequency is 700KHz, the maximum The low-speed pulse frequency is 10KHz.
Easy to debug: It can be managed and configured through the easy-to-operate and maintain LAN connection configuration software. With LED indicating working status, with reset button to reset, easy to install and debug on site.
