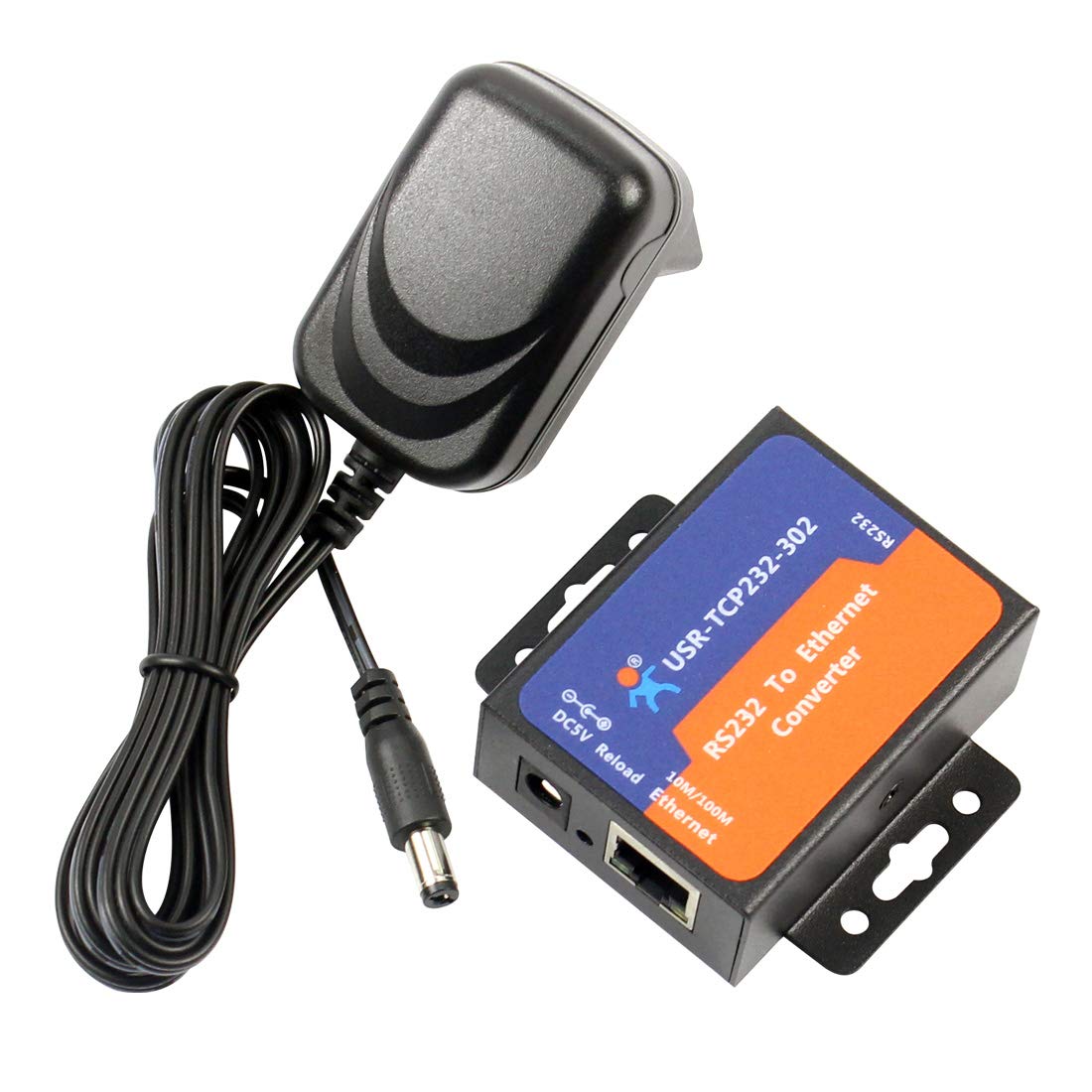

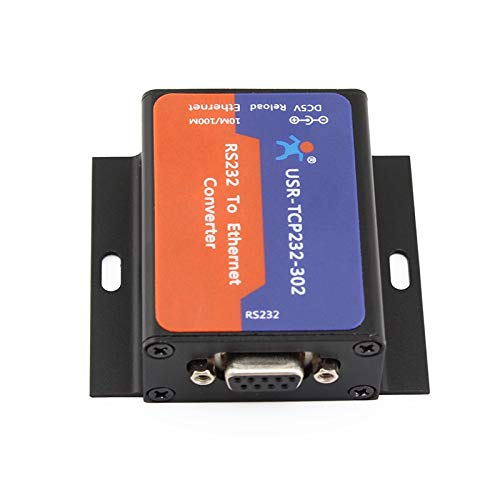

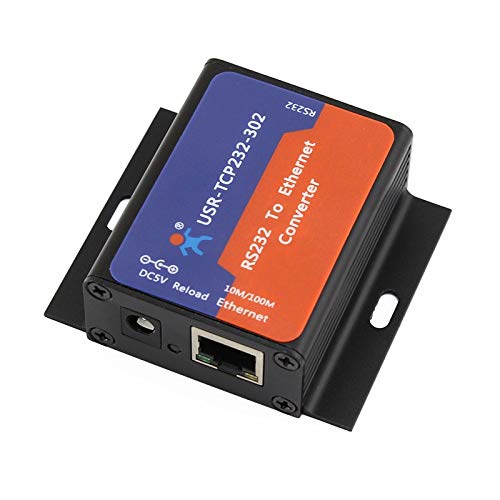

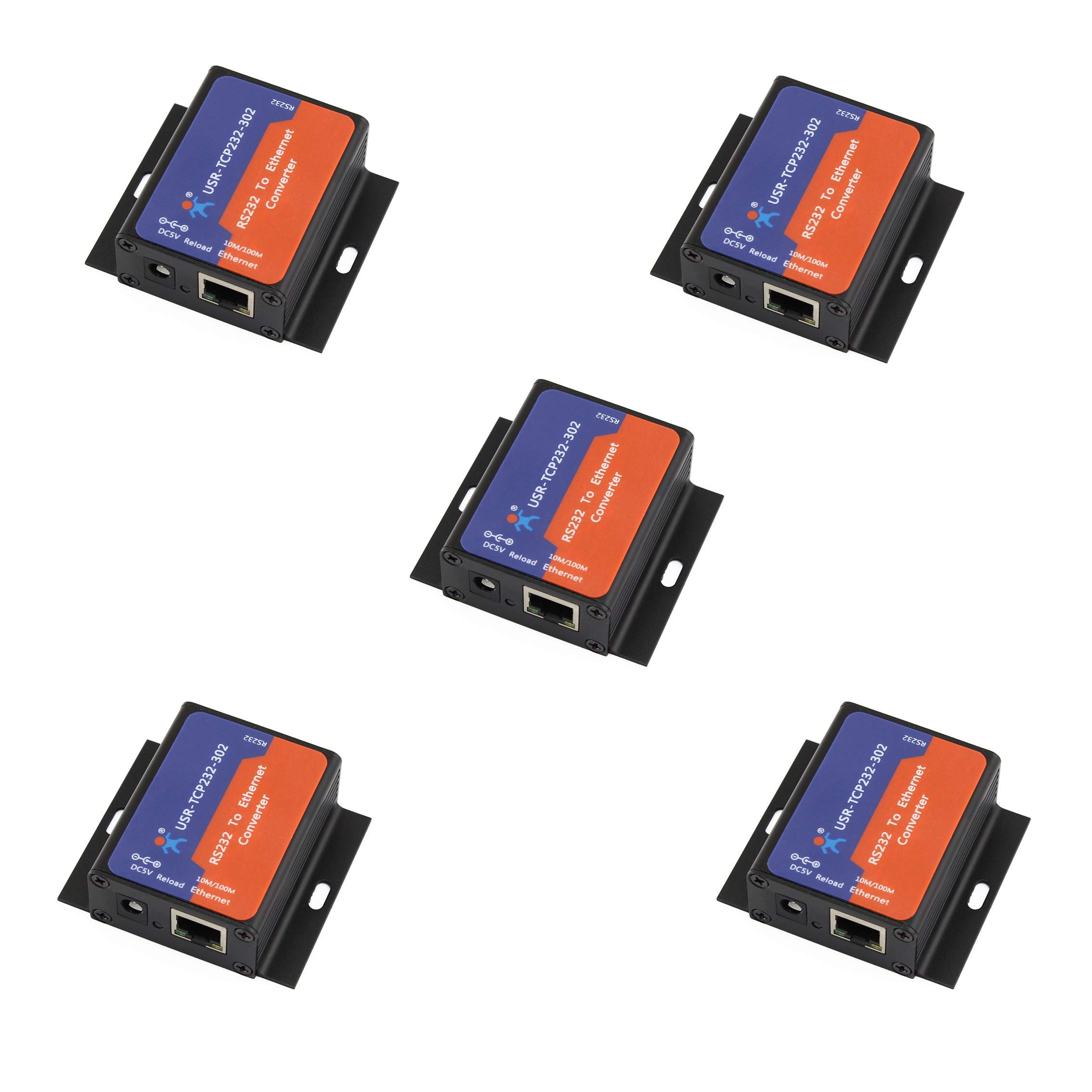

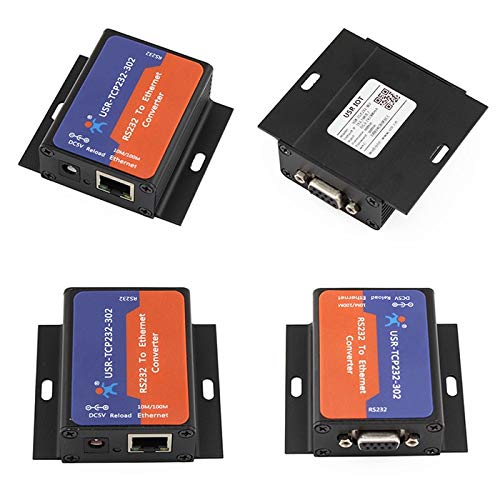

USR-TCP232-302 5-Pack Tiny Serial RS232 to Ethernet TCP/IP Converter Module - DHCP/DNS Support | Ideal for Industrial Automation, IoT Devices & Network Communication Solutions

Product Description

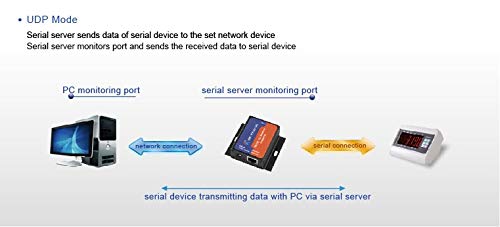

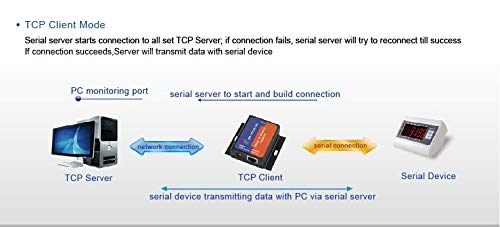

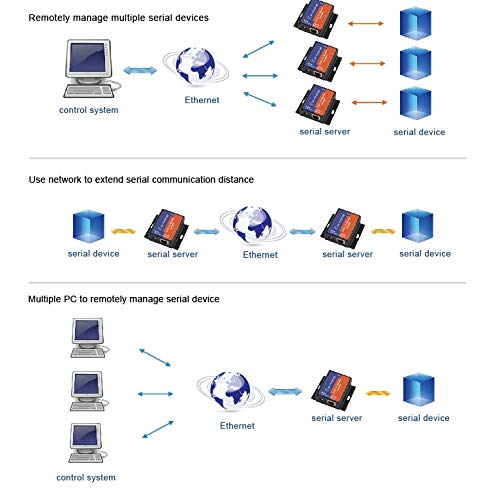

Features of RS232 Ethernet ServerSupport DHCP, automatically obtain an IP address and query IP address through serial setting protocolSupport DNS functionSet parameters through webpageUpgrade firmware via networkAuto-MDI/MDIX, RJ45 port with 10/100MbpsSerial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and SpaceWork mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD ClientSupport virtual serial port and provide corresponding software USR-VCOMHeartbeat package mechanism to ensure connection is reliable, put an end to dead linkUser-defined registration package mechanism, check connection status and use as custom packet headerUnder TCP Server mode, Client number ranges from 1 to 16; default number is 4The global unique MAC address bought from IEEE, user can define MAC addressRestore factory defaultAcross the gateway, switches, routersCan work in LAN, also can work in the Internet (external network)Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOSSupport customizationApplication Field of RS232 Ethernet ServerIndustrial data transmission, industrial automationsecurity and protection monitoring, public securitySmart home, power control, environmental monitoring, intelligent agricultureDoor check on work attendance system, POS system, rice selling systemBuilding automation system, power monitoring, self-service banking system, telecom machine room monitoringPackage Content:1x RS232 to Ethernet Server1x DC power adapter
