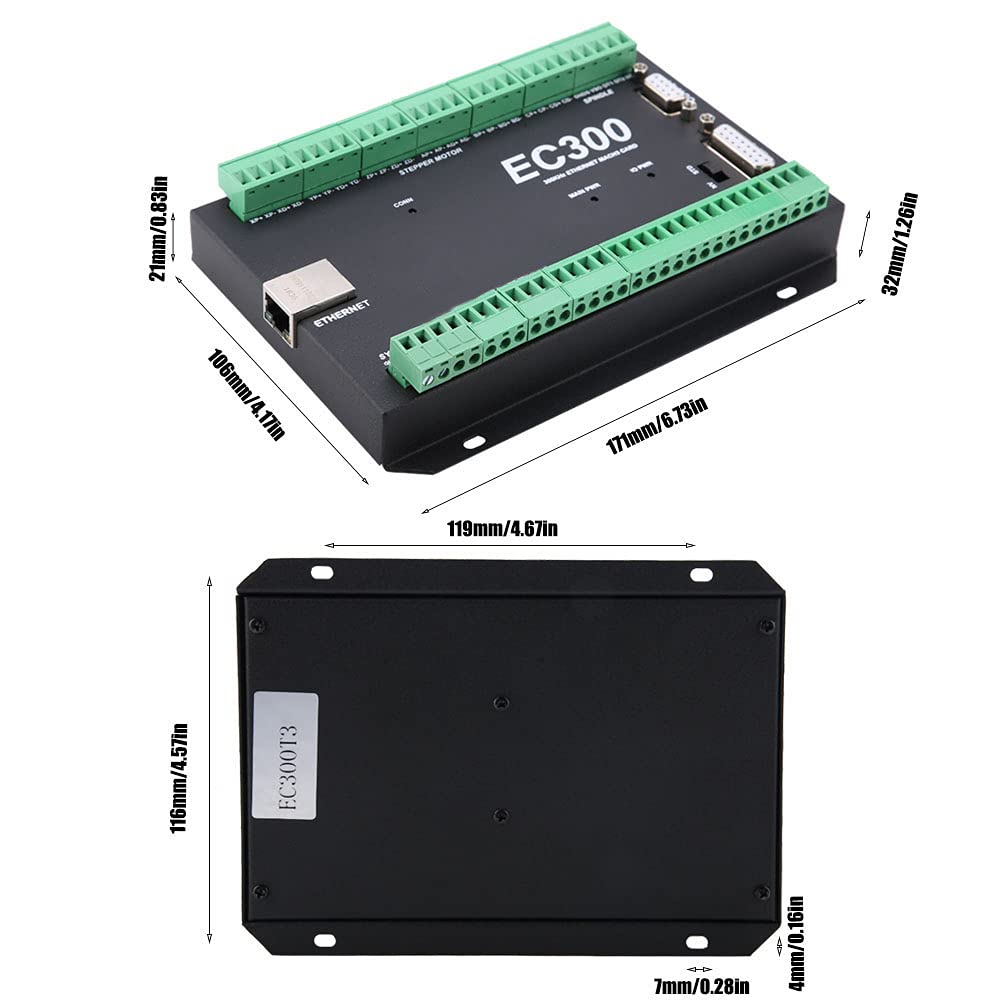

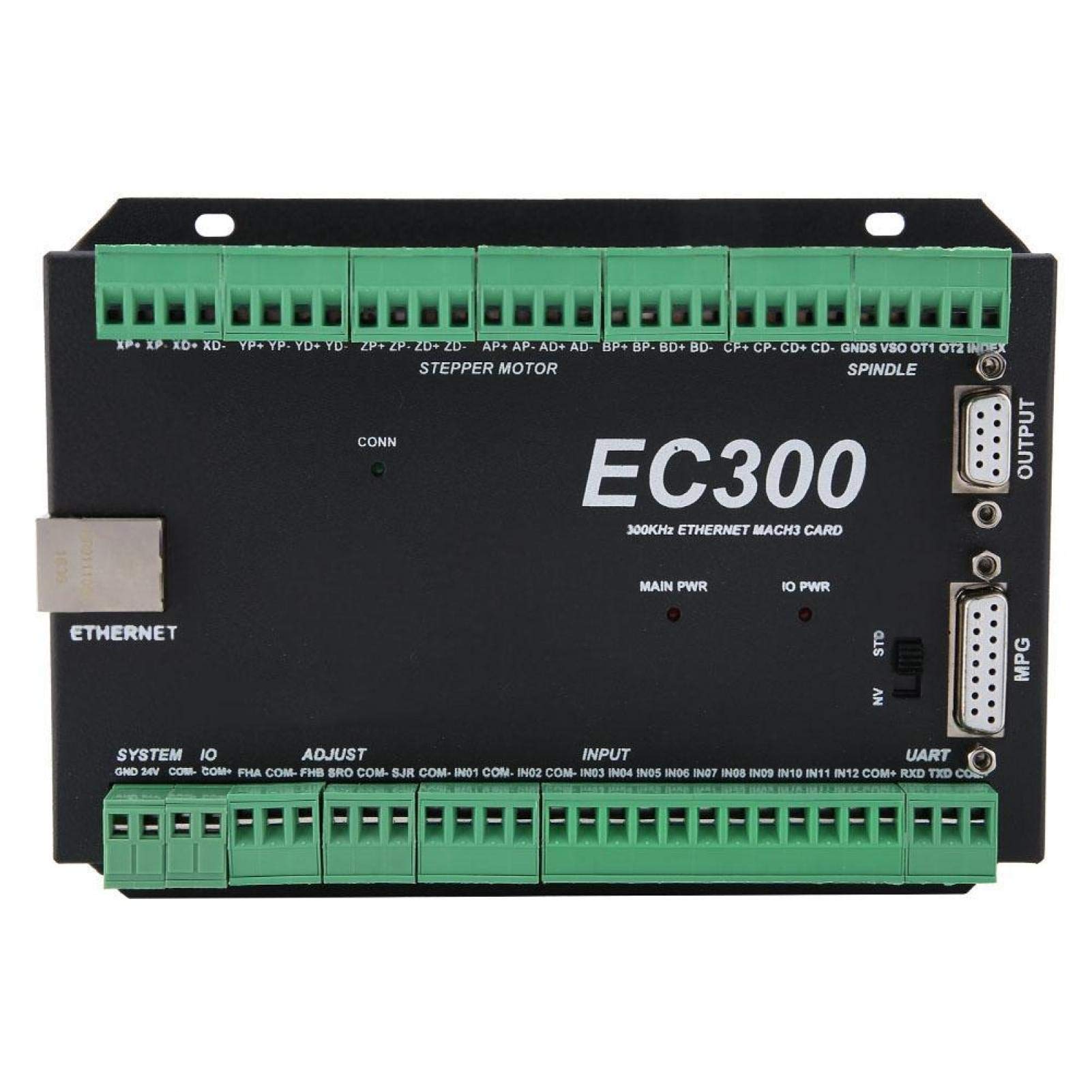

Ethernet Motion Controller High Reliability EC300 Digital Dream MPG CNC Control System 3-6 Axis 300kHz Input Ports for Software(3-axis) IO Power is 24VDC power supply input,current should higher than 1A(The controller already supply the power for IO port,no need the external power supply for IO port anymore). Ethernet Connection with Mach 3 Software. Main power supply 24VDC, Current should higher than 1A. The EC300 is a high-performace external motion controller for Mach 3 software, with Ethernet interface supporting standard MPG and Digital Dream MPG. The device can communicate with a connection to a control computer's network. The network connection can be built with direct connection or via router/Swith devices. Feature: Spec: Options: 3/4/5/6 Axis Power supply: 24VDC >1A output frequency: 300kHz/Axis Dimensions: 17.1*10.6*32mm / 6.7*4.2*1.2in Weight: Approx. 778g/27.4oz Package list: 1 * Motion Control Board 1 * Connection Cable 2 * Terminals
【Product Description】 This EC300 control system is a high performace external motion controller for Mach 3 software , with Ethernet interface supporting standard MPG and Digital Dream MPG , which is an ideal choice for you
【Wonderful Components】 Our Ethernet motion control card board adopts ARM motion control chip , and it also owns two relays to output , users can choose motion control 3 6 Axis(X , Y , Z , A , B , C) as optional choice

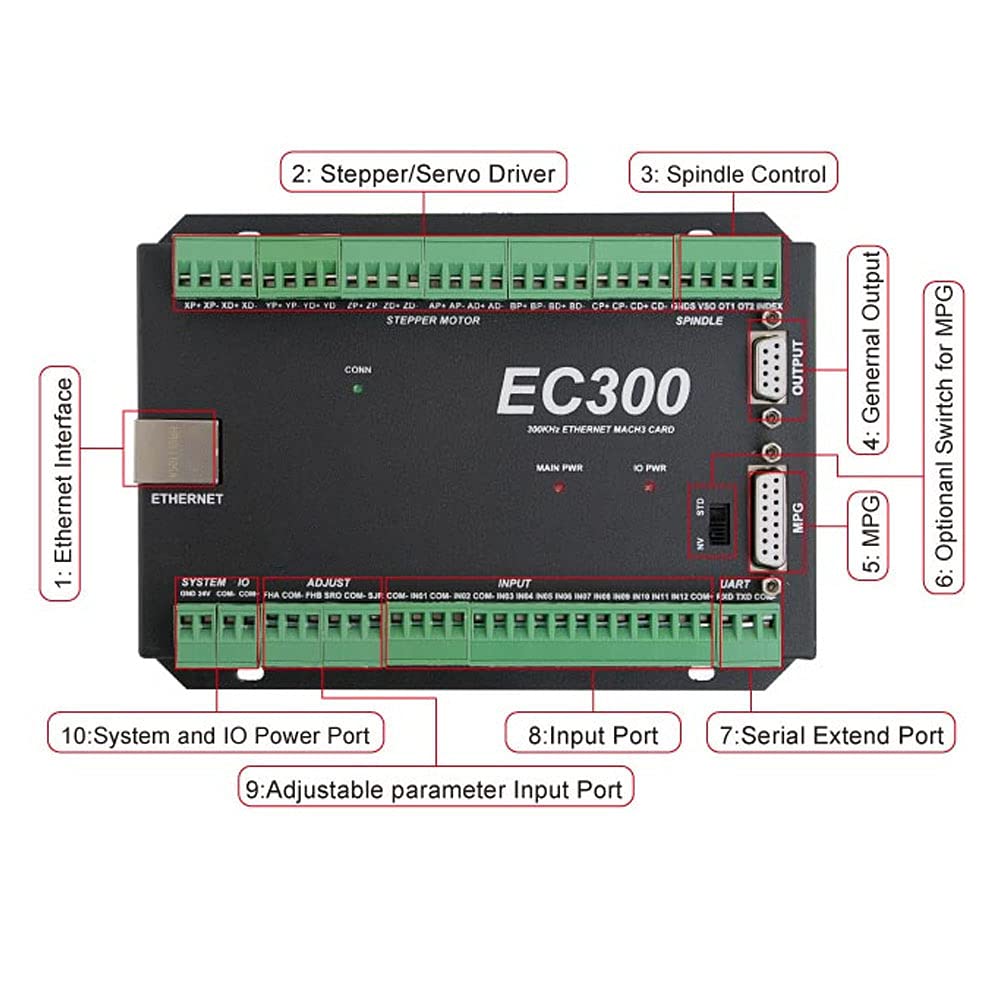

【Input Ports】 Our DC 24V CNC control system possesses 12 opto isolated digital input ports and 10 opto isolated digital output ports , 1 analog output port of 0 10V adjustable speed for spindle (can change to PWM output port)
【Power Supply】 The main power supply is 24VDC , the current should be higher than 1A . IO Power is 24VDC power supply input , the current should be higher than 1A(The controller already supply the power for IO port , no need the external power supply for IO port anymore)
【Network Connecting】 This 300kHz Ethernet motion controller can communicate with a connection to a control computer's network , and the network connection can be built with direct connection or via router/Swith devices
