HDMI Extender Over IP Ethernet Kit - 1080P Full HD up to 120m (395ft) with Local Loop Out | 1-to-Many Distribution via Gigabit Switch | LAN Network IR Control | Works with CAT5e/6/6a/7 Cables (HDIP120) - Perfect for Home Theaters, Conference Rooms & Digital Signage

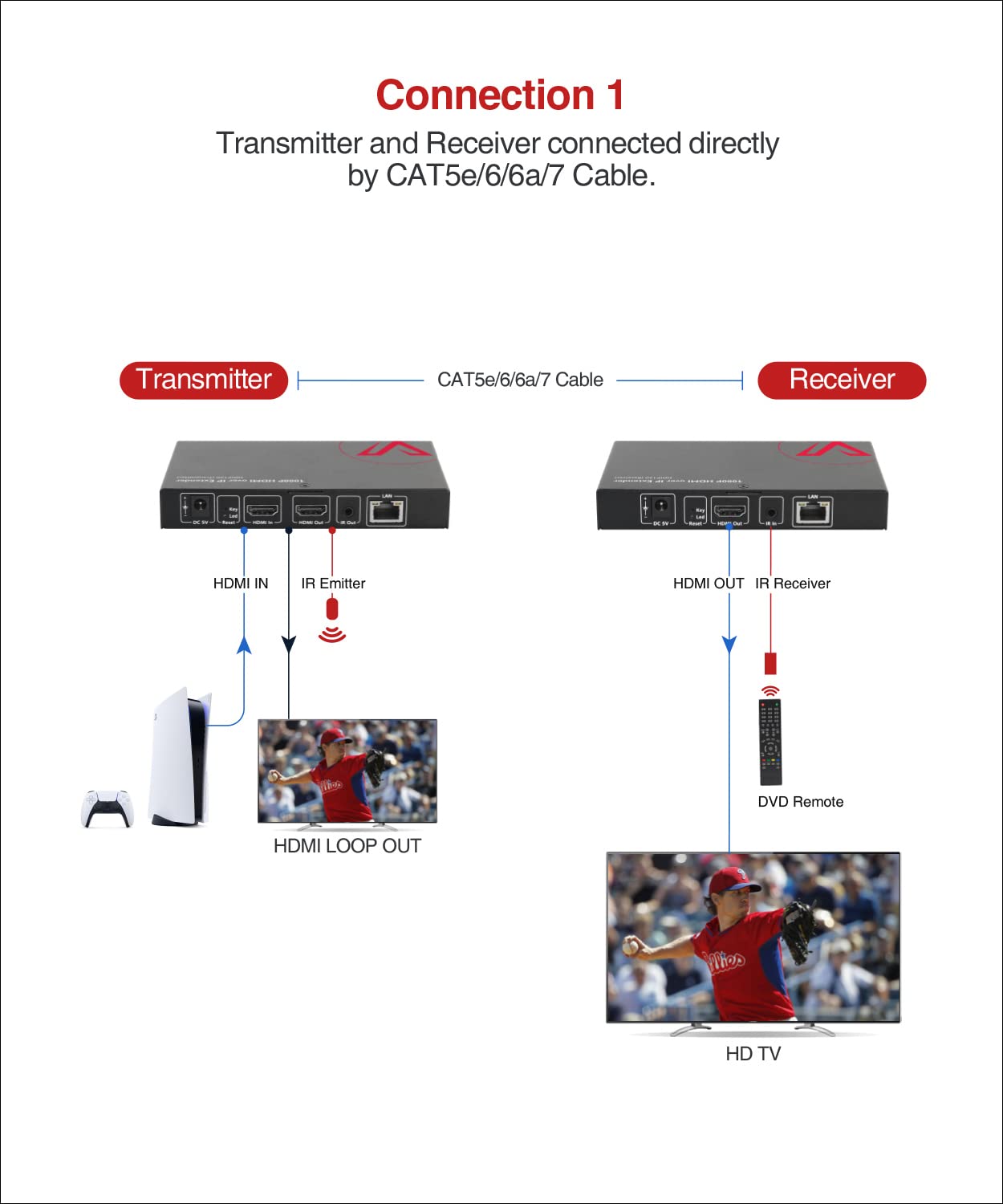

【?????@???? ???? ?? ???】 Hdmi Extender supports up to 1080P@60Hz point to point within 394ft/120m by single ethernet cable. Easy set up connect HDMI source device (PC, Xbox One X/PS4 Pro, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect the HDTV from a remote location to the Receiver.

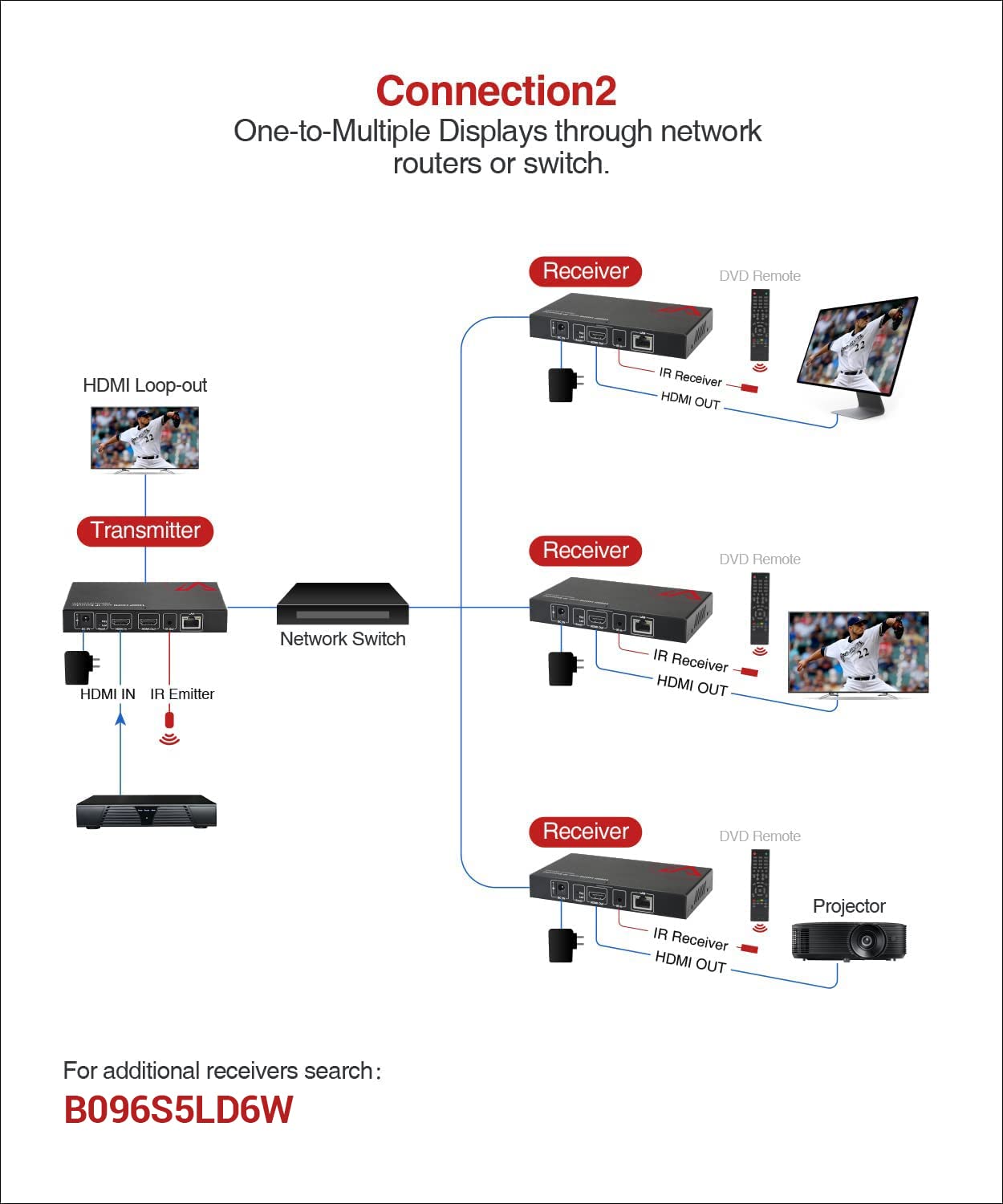

【??? ?? ???? ???? ????????】Direct cable connection or One-to-Multiple Displays through most network routers or switch. You can connect up to 10 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays to create a scalable HDMI extender splitter. Additional receivers are sold separately, search ASIN[B096S5LD6W] or contact seller for more details.

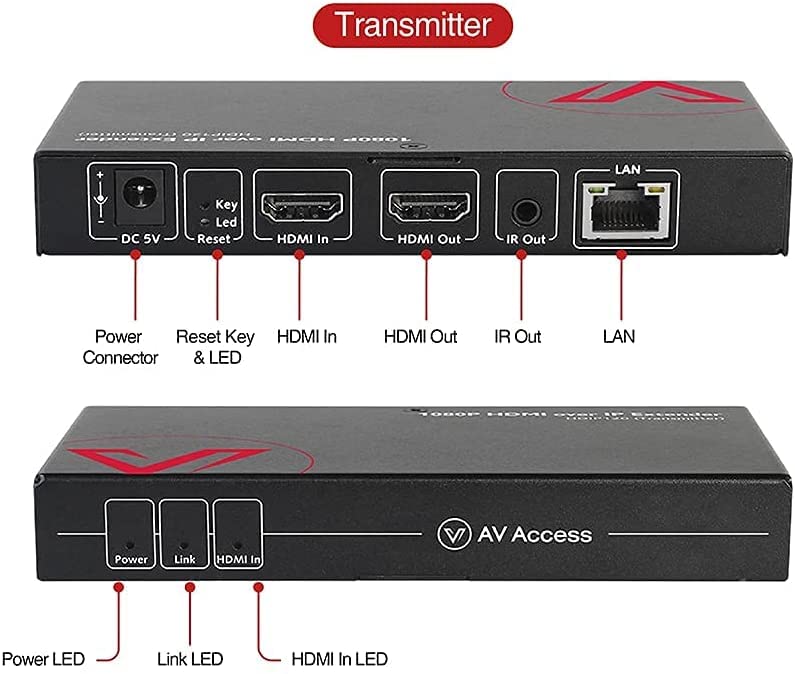

【????? ????-???】A HDMI loop-out for local display, for monitoring when extended display can't be seen in transmitter side. The extender will send back the IR signal so you can control source device at receiver’s end.

【??????????? ?????????】You can remote control PC, PS, Xbox with keyboard, mouse and gamepad. Interactive Display Operation, Data transmission and USB streaming up to 100m. With all operation systems Windows, Mac, Linux. No Driver Needed, plug & play.【Importance】When Transmitter and Receiver was connected over switch, to guarantee constant 800M high bandwidth, they MUST work with Gigabit switch, NOT with Hundred Megabyte switch.

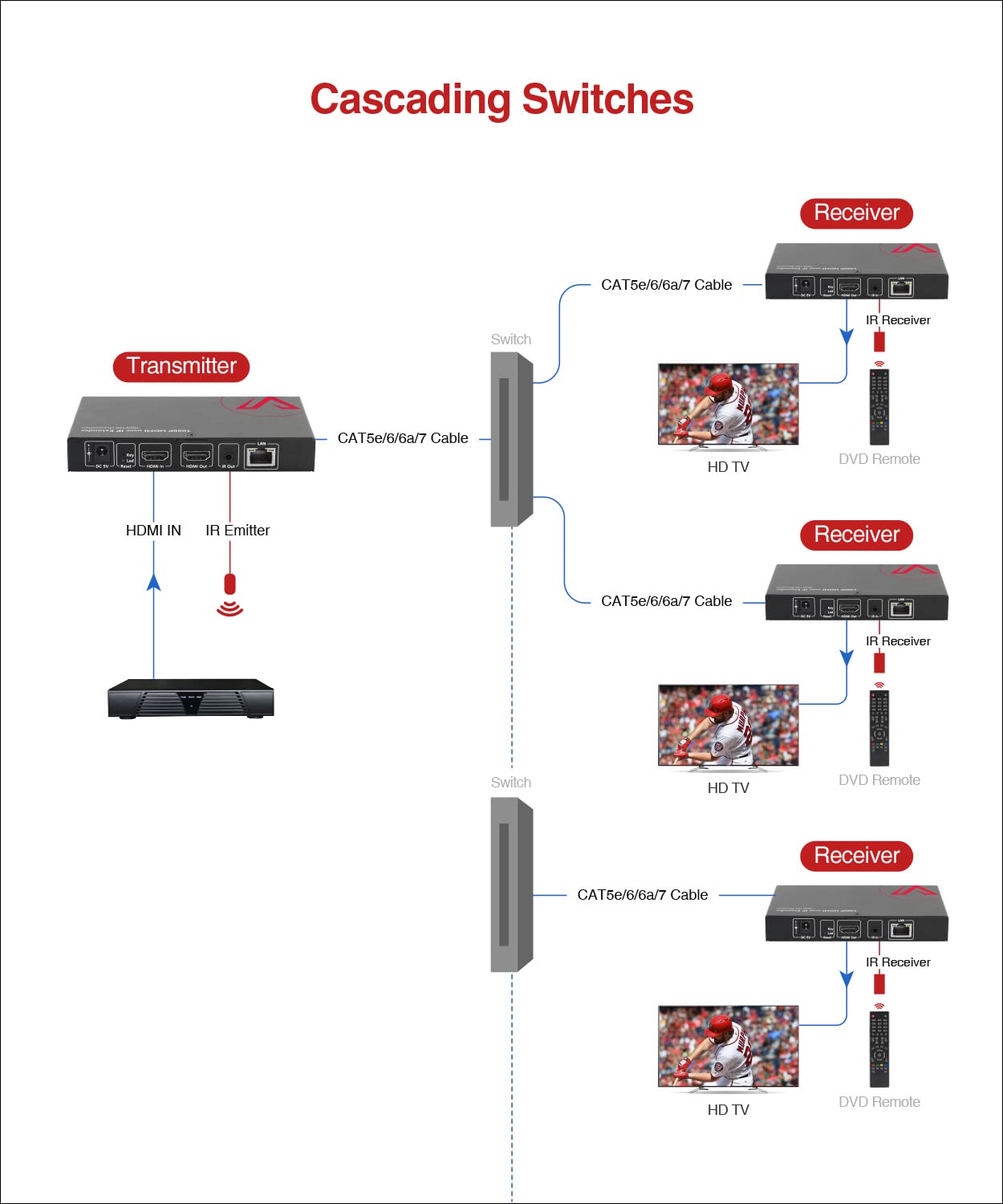

【???? ??? ????】Work with almost any ethernet switch with NONE configuration required. Combinations：1) one transmitter to one receiver, 2) one transmitter to many receivers (≤10)
