SKU:39159011

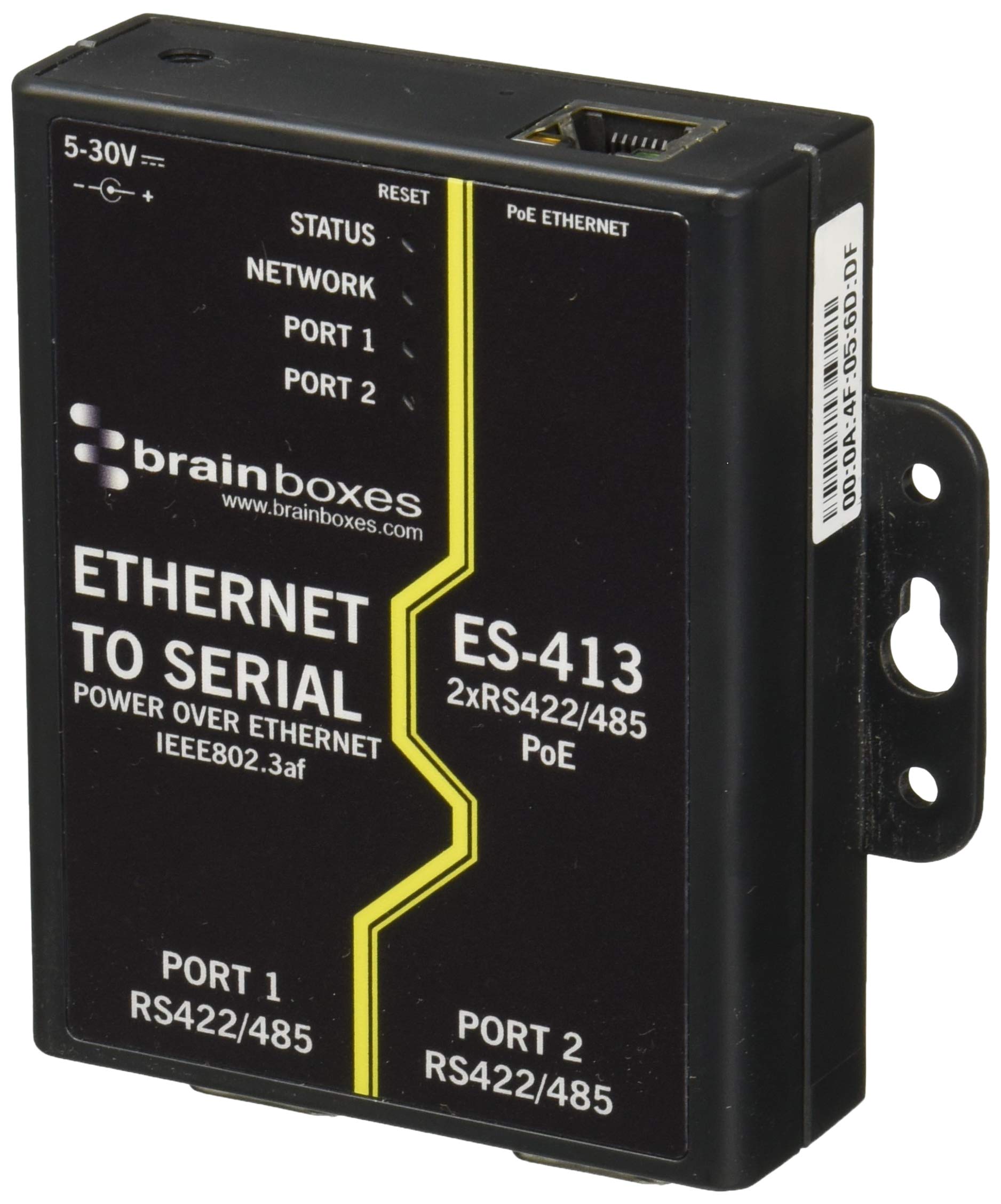

Ethernet to serial device server features user friendly interface, simple to use, powerful in operation and data rate from 110 - 1000000 baud. The Brainboxes ES-413 Ethernet to serial device server provides local control for remote serial device. This device server is user friendly interface, simple to use and powerful in operation. Device server. Dimensions: 1.1"H x 3.9"W x 4"D. Comes in black color. Baud rate: From 110 - 1000000 baud, Data bits: 5, 6, 7 or 8. Data rate: 10/100 mega bits/second. Form factor: Rail-mountable. Interfaces/ports: 2 x serial port, DB9 connector - 9 pin male. Power supply: Power over Ethernet, 5 - 30 VDC input, reverse polarity protected. Ethernet technology: 100Base-TX fast Ethernet. Network protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217. OS compatibility: Communicate with Device over TCP from any OS / Microsoft Windows 8 32 bit 64 bit Editions / Windows Server 2012. User friendly interface, simple to use, powerful in operation. Serial port tunnelling allows serial cable replacement over any distance, no software required. Optional DIN rail mounting kit and stand alone power supply. Certifications and standards: AEO C-TPAT Microsoft Certified Gold Partner WEEE RoHS EMC: CE TAA. Weight: 4.62 oz. Comes with lifetime warranty.
Sold as 1 Each.
Device server. Dimensions 1.1"H x 3.9"W x 4"D.
Comes in black color. Baud rate From 110 - 1000000 baud, Data bits 5, 6, 7 or 8.
Data rate 10/100 mega bits/second. Form factor Rail-mountable.

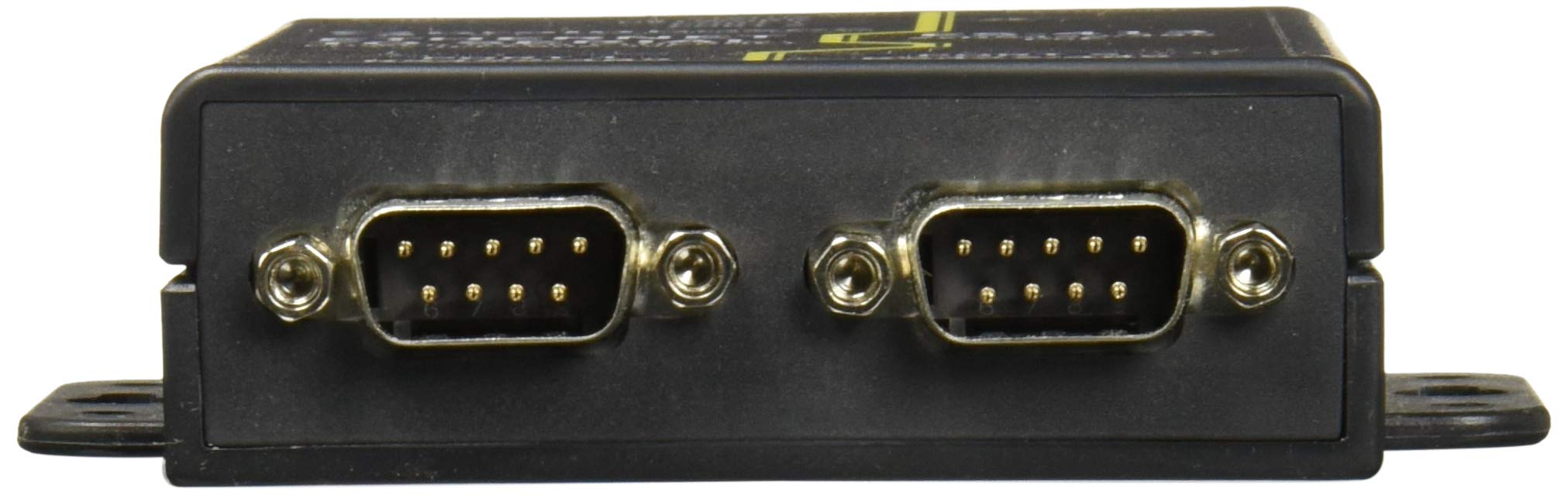

Interfaces/ports 2 x serial port, DB9 connector - 9 pin male. Power supply Power over Ethernet, 5 - 30 VDC input, reverse polarity protected.
