Intel NUC Gigabit SFP Fiber Ethernet LID - High-Speed Network Adapter for Home Office, Gaming & Server Applications

Product Description

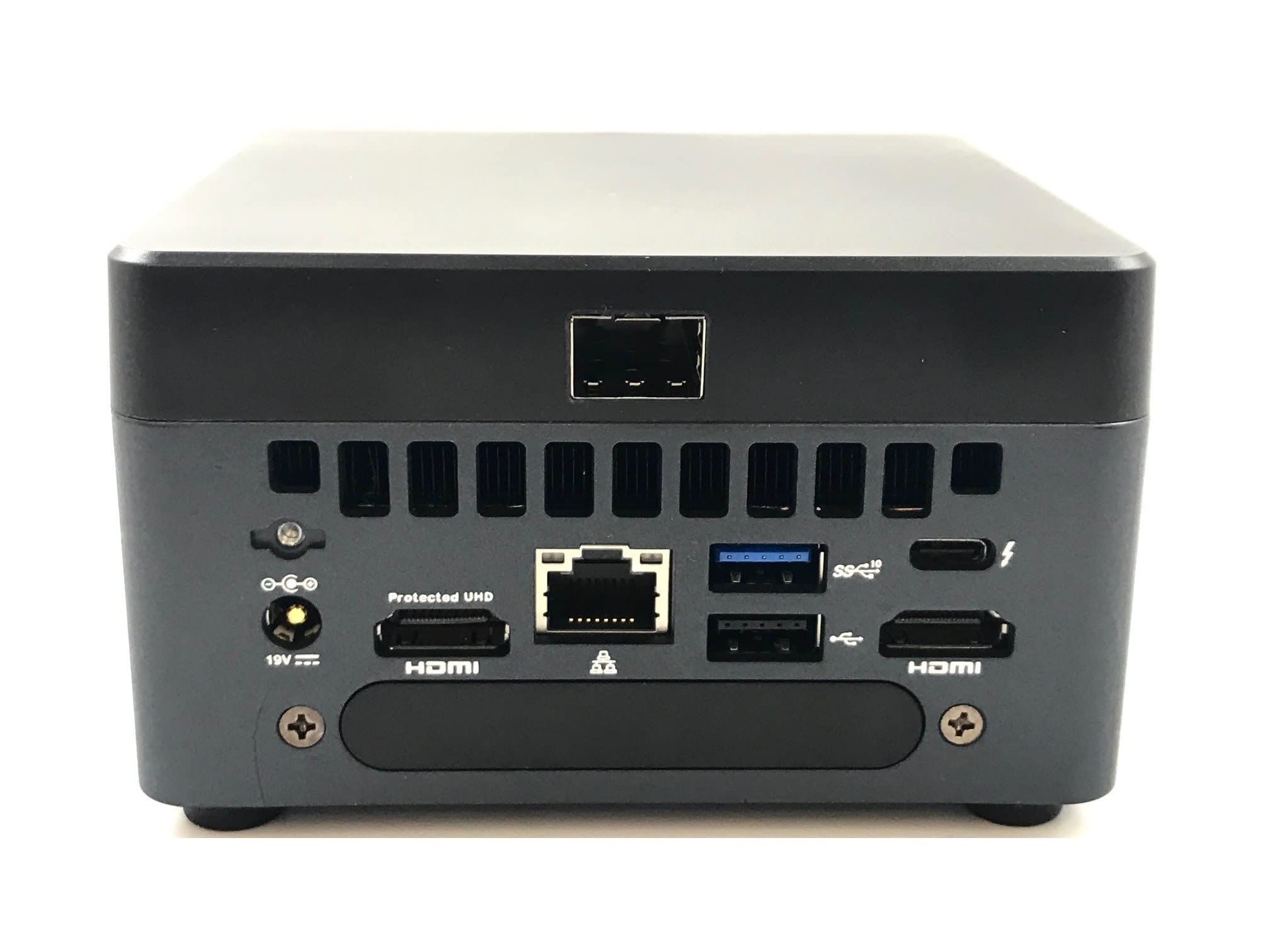

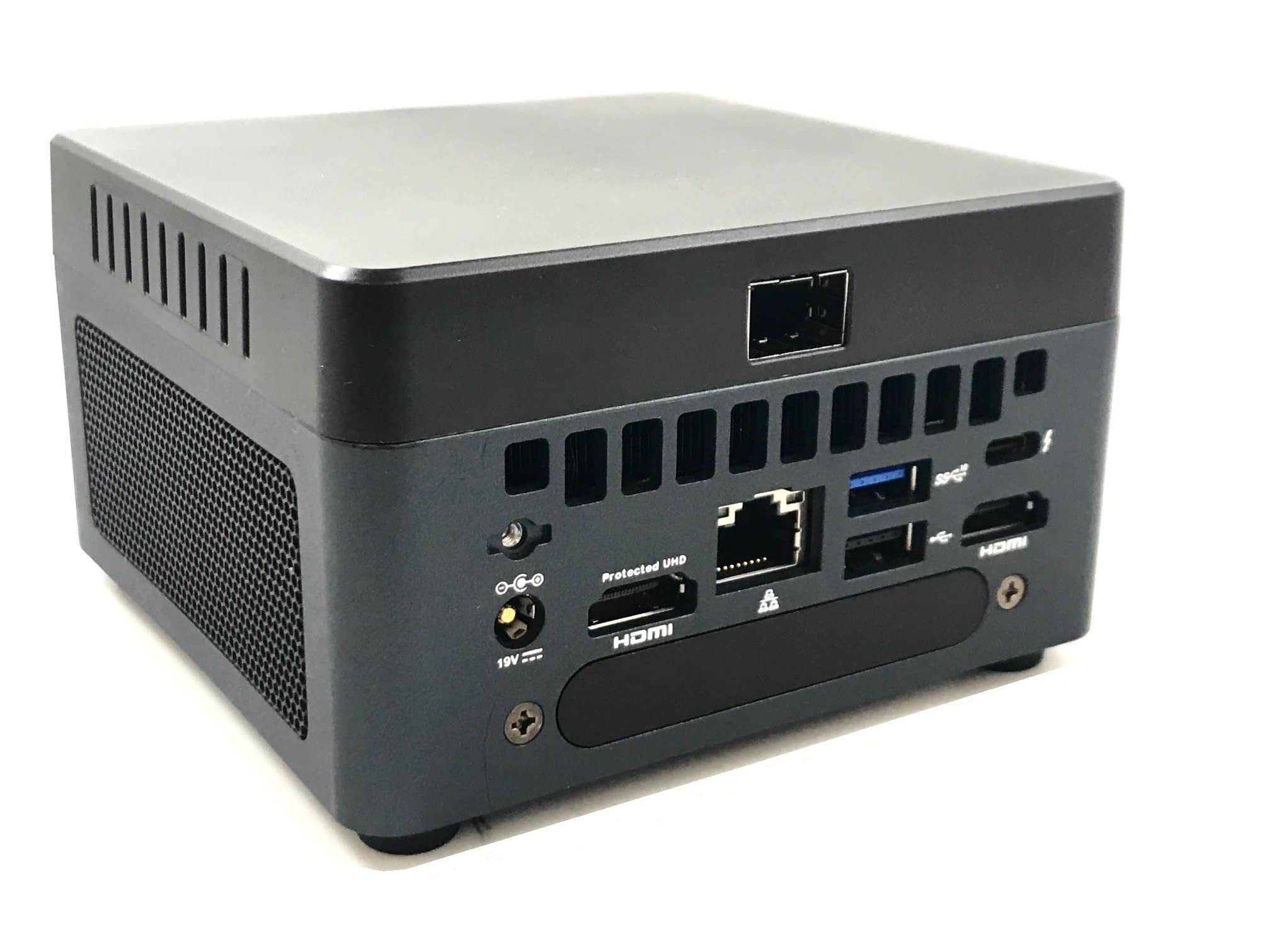

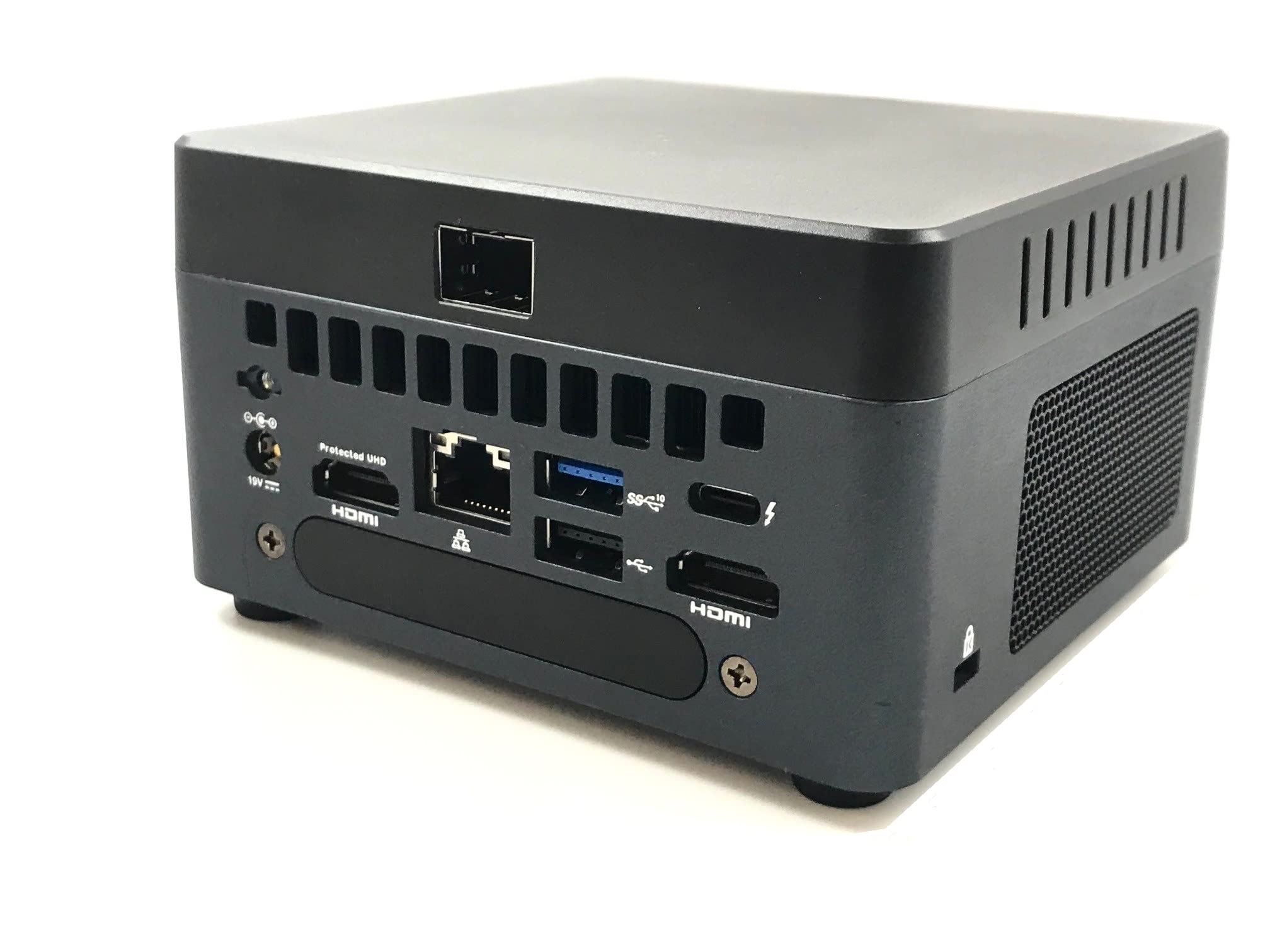

‌Intel NUC Gigabit SFP Fiber Ethernet LIDDescription :This is an Intel NUC Gigabit SFP Fiber Network LID that uses controller RTL8153 which its features higher bandwidth and improved protocols for data exchange between the host and the device. The RTL8153 supports IEEE802.3az-2010, also known as Energy Efficient Ethernet (EEE), and it is fully compliant with Microsoft NDIS5, NDIS6(IPv4,IPv6,TCP,UDP)checksum features ,and supports IEEE802 IP layer 2 priority encoding and IEEE802.1Q Virtual bridged Local Area network(VLAN).Features :HardwareThe Gigabit SFP Fiber Ethernet LID is Connected to the NUC MB via a cable connection to the USB 3.0 Internal 10 pin internal header Integrated 10/100/1000M transceiver Auto-Negotiation with Next Page capability Supports CDC-ECM Supports LPM (Link Power Management) Supports pair swap/polarity/skew correction Crossover Detection & Auto-Correction Supports Wake-On-LAN and ‘RealWoW!’ (Wake-On-WAN) Technology Supports ECMA-393 ECMA ProxZzzy Standard for sleeping hosts XTAL-Less Wake-On-LAN Supports power down/link down power saving Transmit/Receive on-chip buffer support EEPROM Interface Embedded OTP memory can replace external EEPROM Built-in switching regulator and LDO regulator Supports Customizable LEDs Supports hardware CRC (Cyclic Redundancy Check) functionSoftware Offload :Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and SegmentationTask-offload (Large send v1and Large send v2) supportSupports jumbo frame to 9K bytesIEEE :Supports Full Duplex flow control (IEEE 802.3x)Fully compatible with IEEE 802.3 and IEEE 802.3uPN # GR-LID-1969
