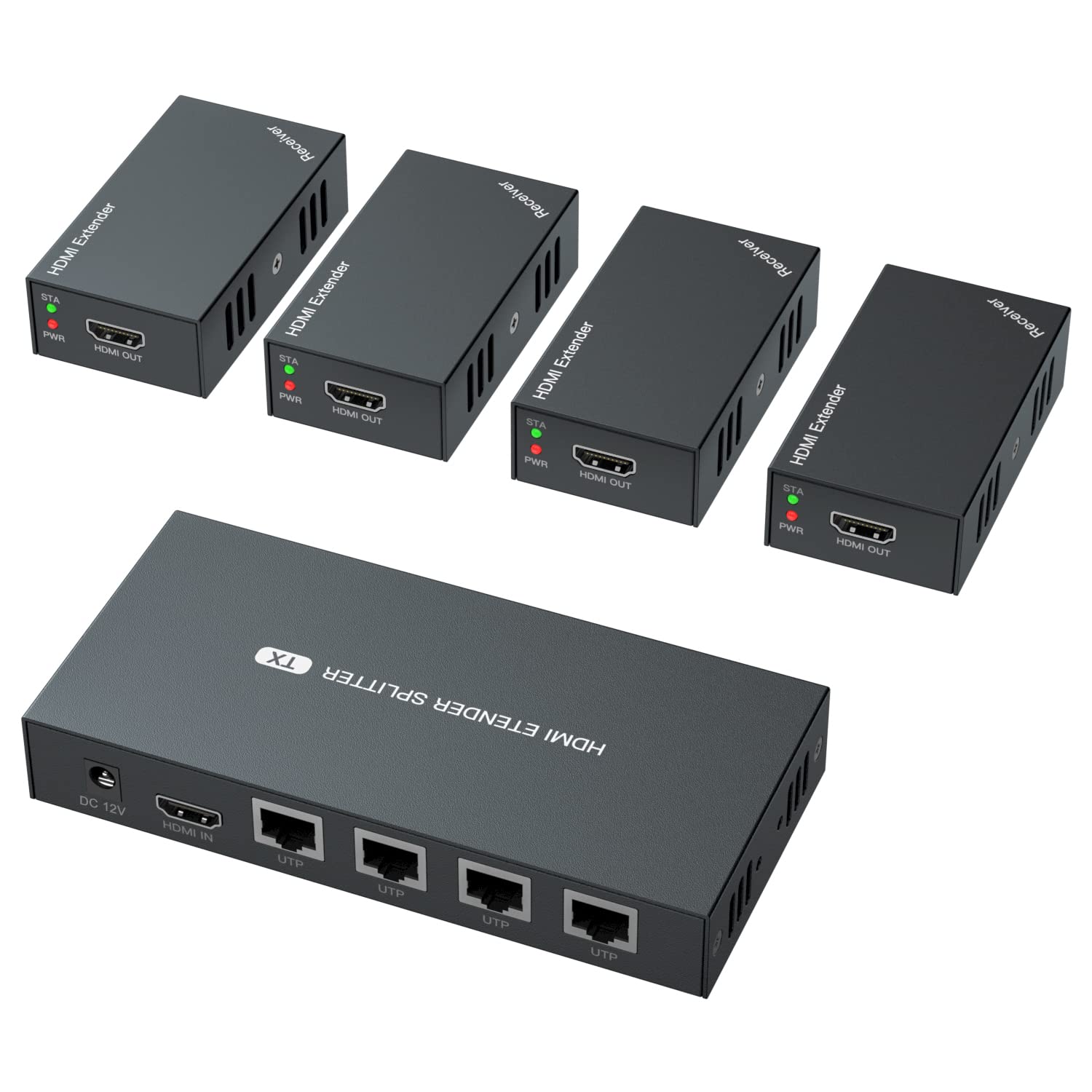

PWAYTEK HDMI Extender Splitter 1x4 - 1080P@60Hz Over Cat 5E/6/7 Ethernet Cable up to 50m (165ft) with EDID Copy & POC Function (1 Input 4 Output) - Ideal for Home Theater, Conference Rooms & Multi-Screen Displays

Product Description

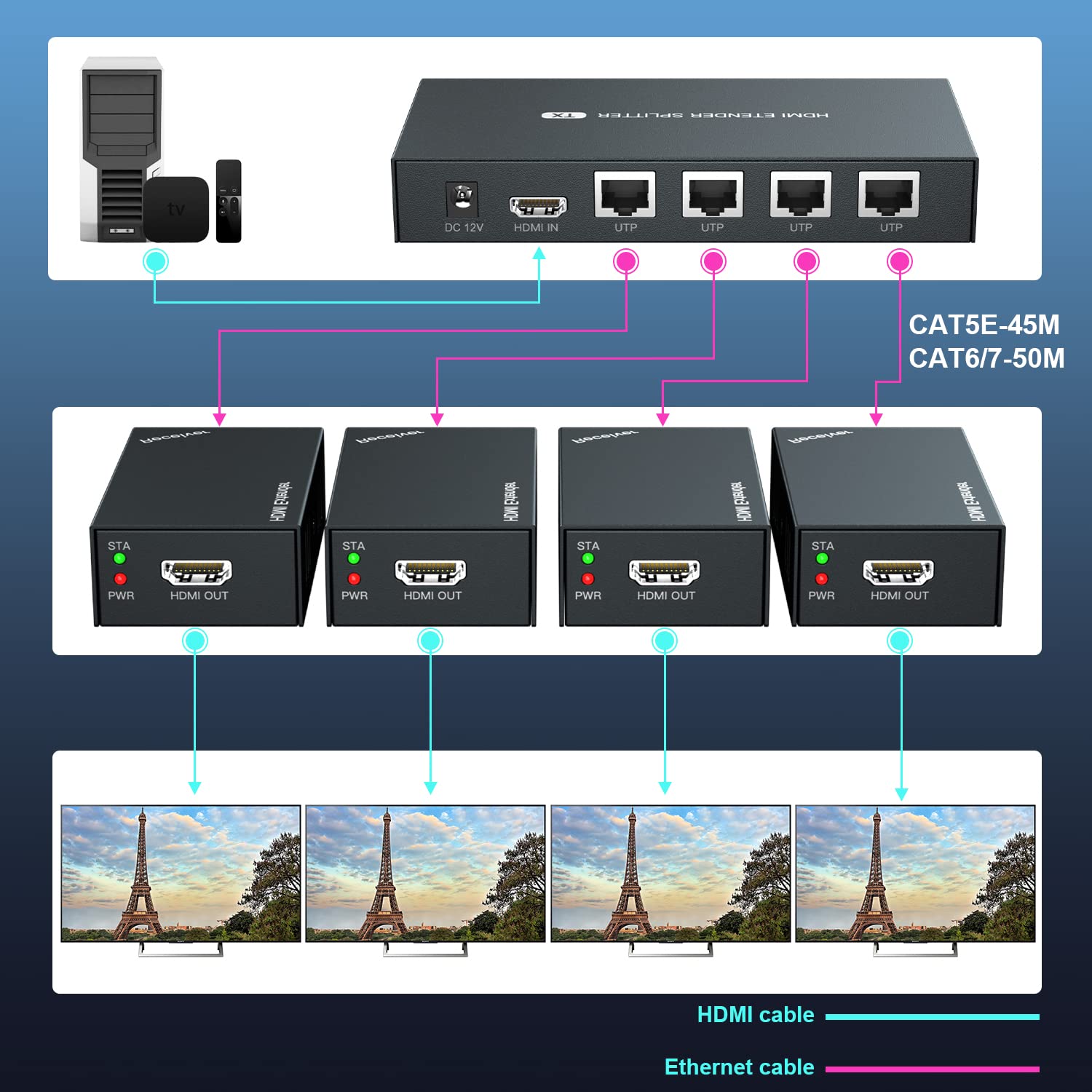

PWAYTEK HDMI 1x4 Extender/Splitter extends HDMI signal losslessly to 4 monitors via Cat5/Cat6/Cat7, sharing 4 identical video Plug the Cat5e/6/7 network cable into the RJ45 jack to instantly share audio&video in 4 rooms HDMI Version: Highest HDMI 1.3 HDCP Version: Highest HDCP 1.2 Resolution: Highest 1920x1080P@60Hz, compatible with 3D, 1080i, 720p etc. Distance: Max Cat6/7--50m/165ft, Cat5e--45m/147ft RJ45: Requires T568B About EDID: When the EDID cannot automatically identify the monitor parameters, the image may not be displayed, please perform the following steps. (1) Connect the monitor to the HDMI IN on transmitter with one hdmi cable (2) Connect power and start the transmitter and monitor. (3) Press and hold the EDID button for 3-5 seconds, complete EDID setup (green light from blinking to stop) (4) Connect all devices normally --- The state of the light when the device is working PWR red power light: always on STA green signal light: always on --- What should I do when this unit is not working? (1) Set the signal source resolution within 1920*1080p@60hz. (2) Connect the signal source and monitor to see if it works. (3) If your connection has an RJ45 wall socket, make sure the total cable length is within 50m/165ft. (4) When the Ethernet cable is between 1~10 feet(too short), it may have no image, please try another longer cable. (5) Make sure the RJ45 is T568B. Last but not least, if have any product issue, please let us know and we will provide you with solutions.
