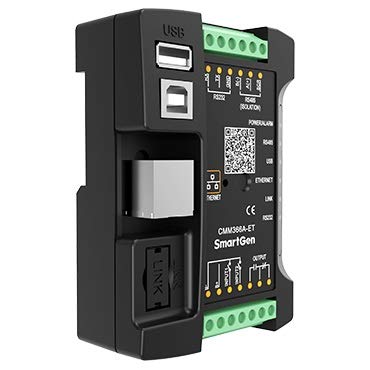

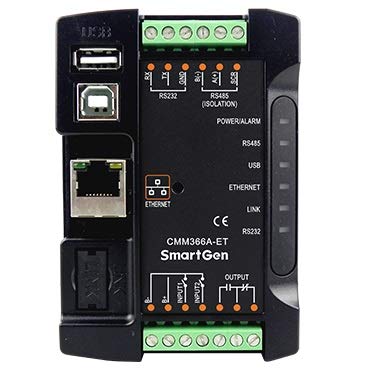

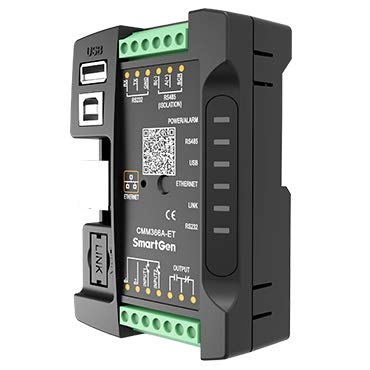

CMM366A-ET Wired Ethernet Adapter for Cloud Server Connection - High-Speed Internet Access for Home Office & Data Centers

Product Description

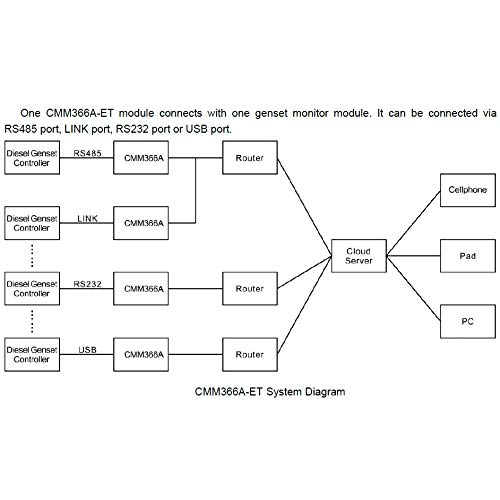

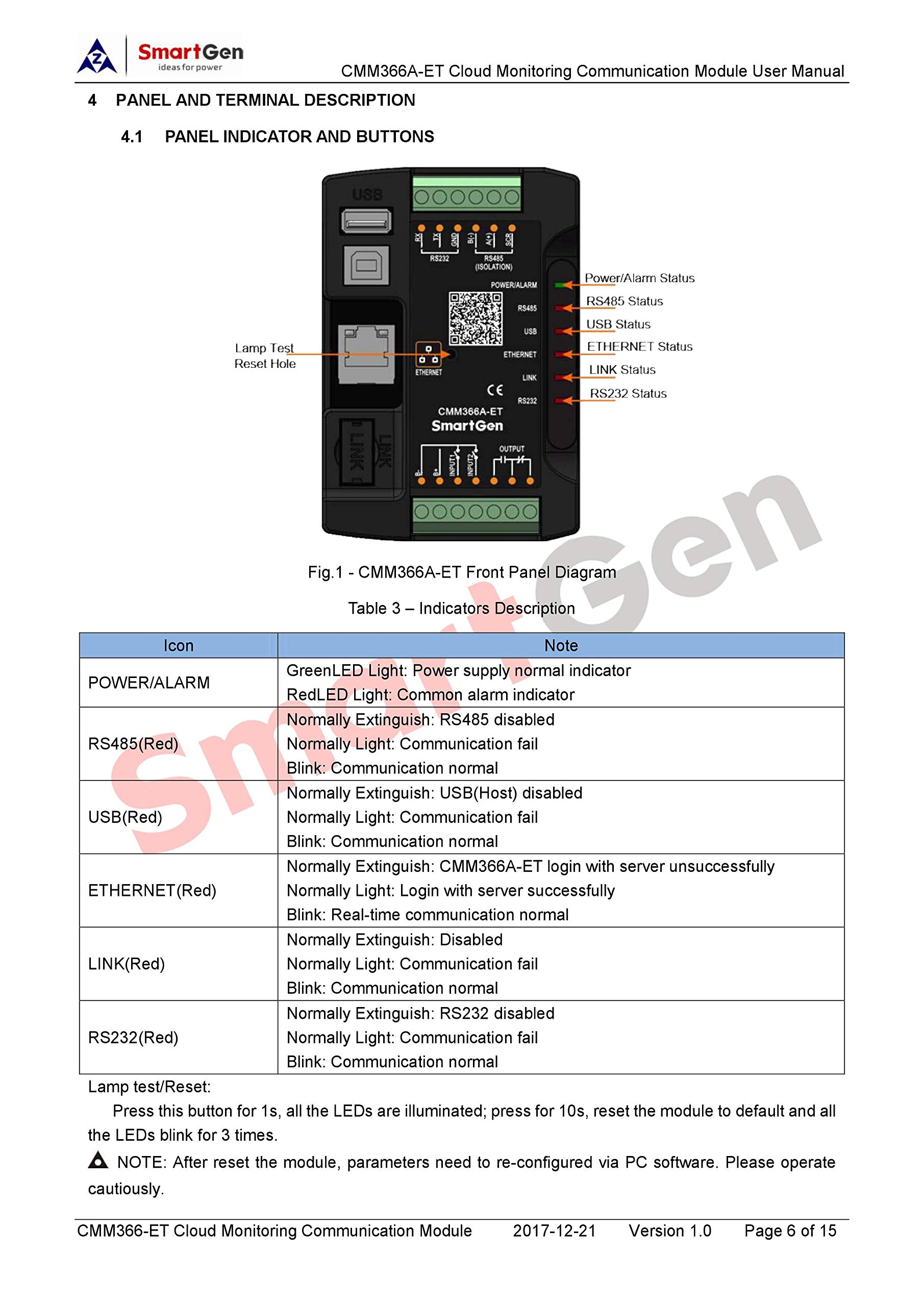

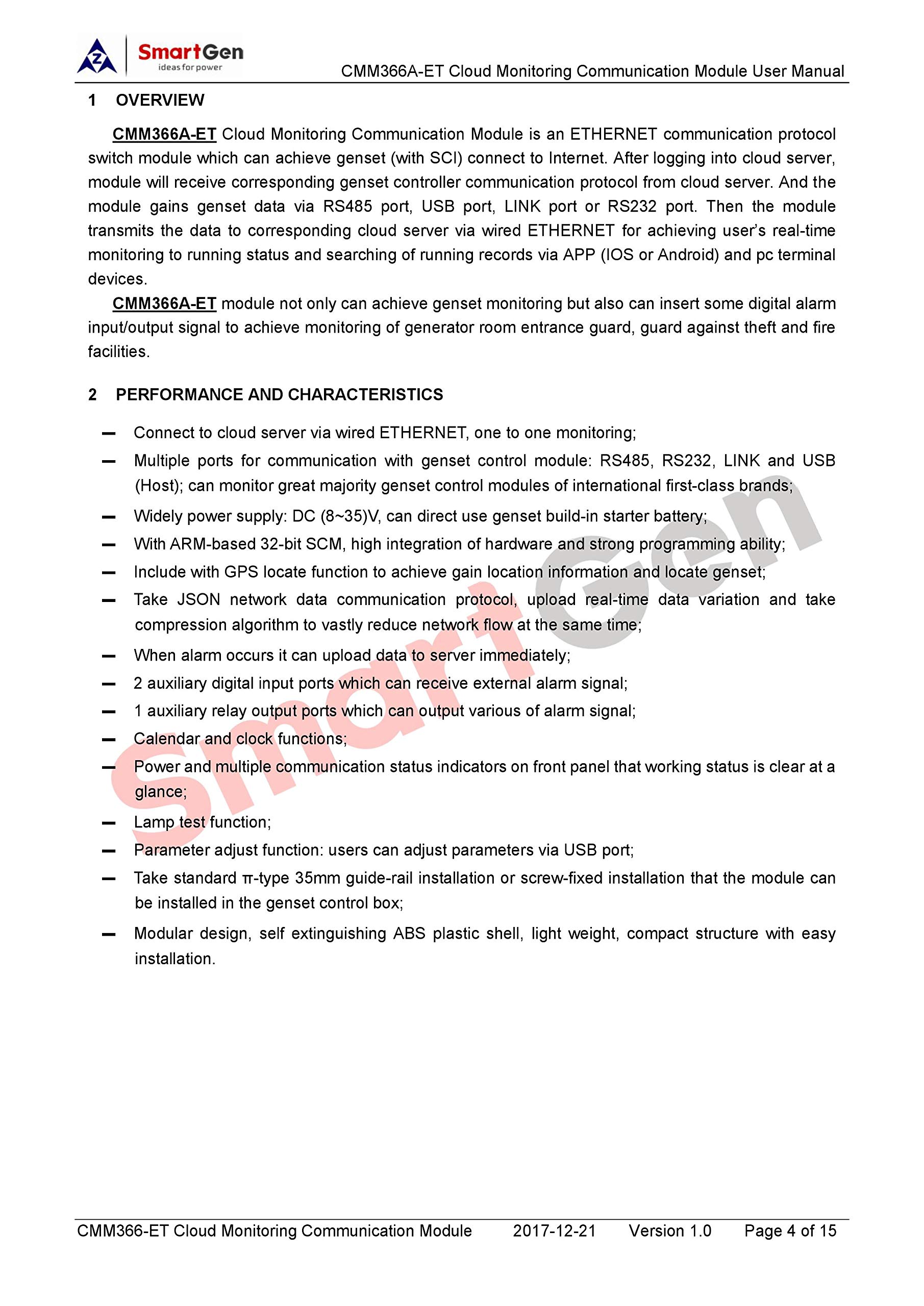

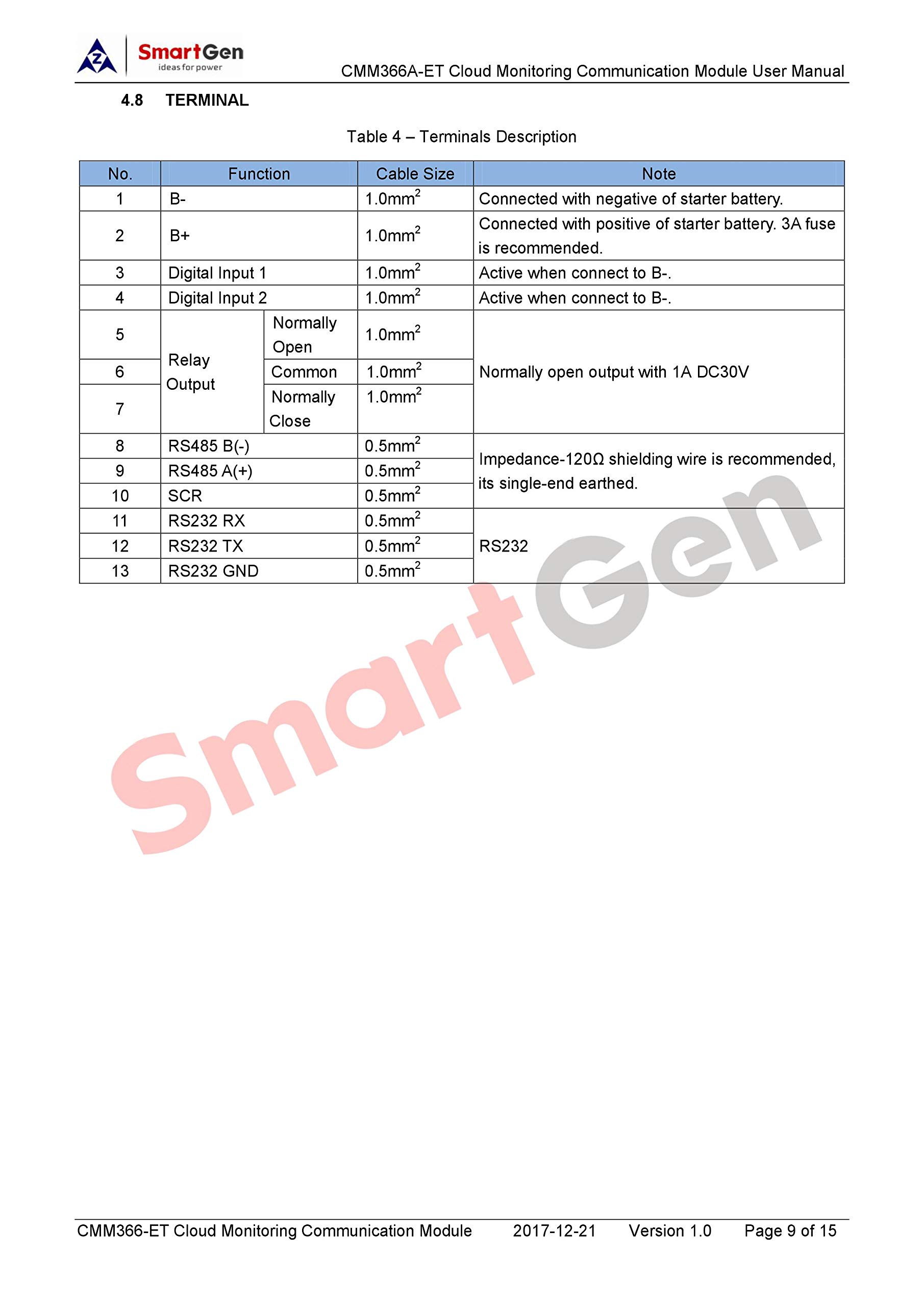

PERFORMANCE AND CHARACTERISTICS 1.Connect to cloud server via wired ETHERNET, one to one monitoring; 2.Multiple ports for communication with genset control module: RS485, RS232, LINK and USB (Host); can monitor great majority genset control modules of international first-class brands; 3.Widely power supply: DC (8~35)V, can direct use genset build-in starter battery; 4.With ARM-based 32-bit SCM, high integration of hardware and strong programming ability; 5.Include with GPS locate function to achieve gain location information and locate genset; 6.Take JSON network data communication protocol, upload real-time data variation and take compression algorithm to vastly reduce network flow at the same time; 7.When alarm occurs it can upload data to server immediately; 8.2 auxiliary digital input ports which can receive external alarm signal; 9.1 auxiliary relay output ports which can output various of alarm signal; 10.Calendar and clock functions; 11.Power and multiple communication status indicators on front panel that working status is clear at a glance; 12.Lamp test function; 13.Parameter adjust function: users can adjust parameters via USB port; 14.Take standard π-type 35mm guide-rail installation or screw-fixed installation that the module can be installed in the genset control box; 15.Modular design, self extinguishing ABS plastic shell, light weight, compact structure with easy installation.
